| Brand Name : | Leenz |
| Model Number : | LZANT-10892-A |
| Certification : | RoHs |
| Payment Terms : | T/T |
| Supply Ability : | 5K per day |
| Delivery Time : | 15 days |
1. Specification
| A. Electrical Characteristics | ||
| Port | Port1 | Port2 |
| Frequency | 2400-2500MHz | 5180-5320MHz |
| S.W.R. | <= 1.8 | <= 1.8 |
| Antenna Gain | 14dBi | 14dBi |
| Polarization | Vertical | Vertical |
| Horizontal Beamwidth | 40-42° | 25-26° |
| Vertical Beamwidth | 36-38° | 35-38° |
| F/B | >32dB | >28dB |
| Impedance | 50Ohm | 50Ohm |
| Max. Power | 50W | 50W |
| B. Material & Mechanical Characteristics | ||
| Connector Type | N connector | |
| Dimension | 290*205*40mm | |
| Radome material | ASA | |
| Mount Pole | ∅30-∅75 | |
| Weight | 1.4Kg | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 85 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C | |
| Operation Humidity | ＜95% | |
| Rated Wind Velocity | 36.9m/s | |
2. Antenna - S Parameter Test Data
2.1 VSWR
Port1
Port2
2.2 Total Efficiency & Gain:
| Port 1 | Port 2 | |||
| Frequency(MHz) | Gain(dBi) | Frequency(MHz) | Gain(dBi) | |
| 2400 | 13.3 | 5180 | 14.6 | |
| 2410 | 13.4 | 5190 | 14.8 | |
| 2420 | 13.4 | 5200 | 14.7 | |
| 2430 | 13.4 | 5210 | 14.9 | |
| 2440 | 13.4 | 5220 | 14.7 | |
| 2450 | 13.5 | 5230 | 14.6 | |
| 2460 | 13.6 | 5240 | 14.5 | |
| 2470 | 13.6 | 5250 | 14.5 | |
| 2480 | 13.6 | 5260 | 14.7 | |
| 2490 | 13.6 | 5270 | 14.6 | |
| 2500 | 13.6 | 5280 | 14.4 | |
| 5290 | 14.8 | |||
| 5300 | 14.5 | |||
| 5310 | 14.5 | |||
| 5320 | 14.7 | |||
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |

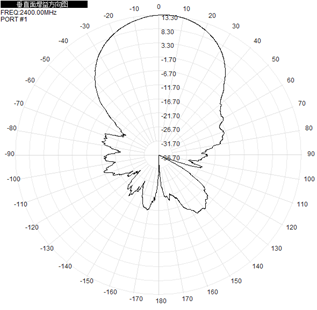

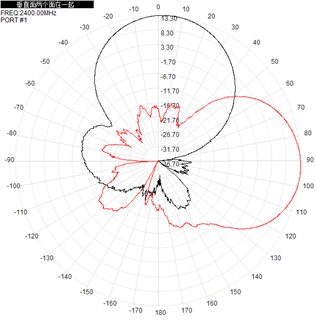

| 2400MHz |  |  |  |
| 2450MHz |  |  |  |
| 2500MHz |  |  |  |
| 2D-Horizontal | 2D-Vertical | Horizontal & Vertical | |

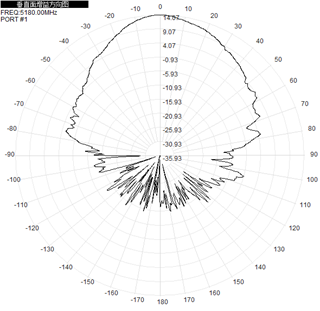

| 5180MHz |  |  |  |

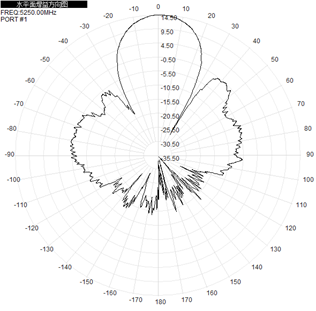

| 5250MHz |  |  |  |

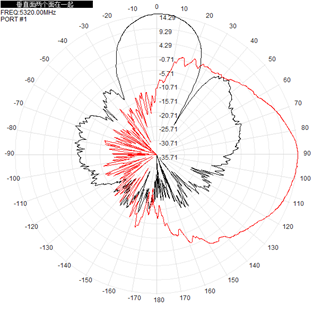

| 5320MHz |  |  |  |
|
|
