1. Specification
| A. Electrical Characteristics | |
| Frequency | 6250-6750MHz |
| S.W.R. | <= 1.8 |
| Antenna Gain | 13dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 29-35° |
| Vertical Beamwidth | 23-29° |
| F/B | >23dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N connector |
| Dimension | 140*120*25mm |
| Radome material | ABS |
| Weight | 0.45Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

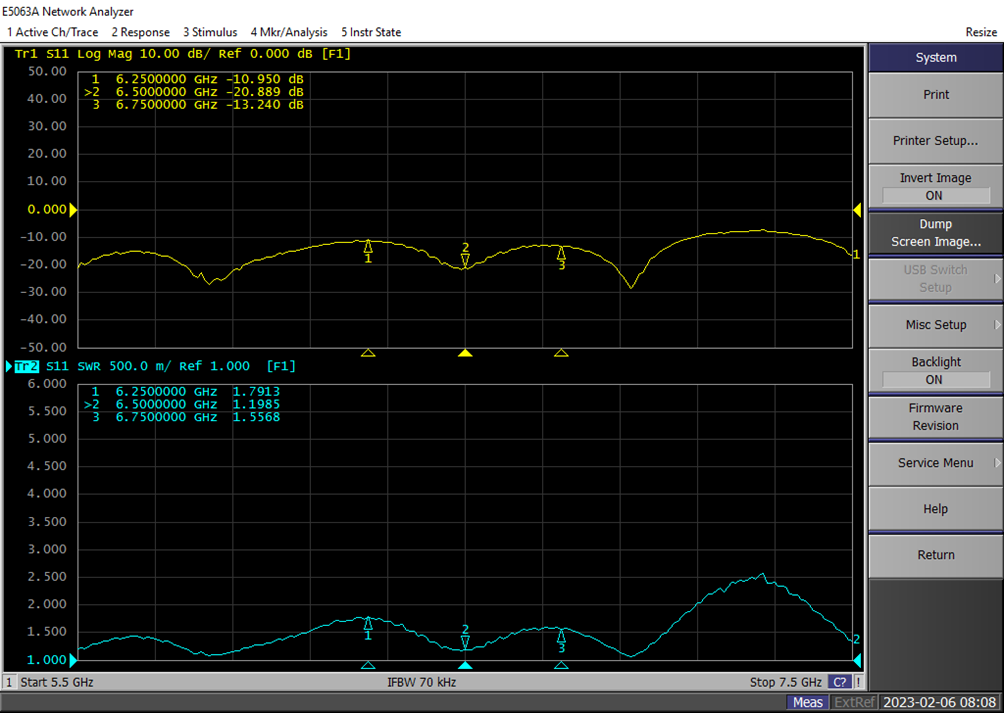

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 6250 | 13.3 |
| 6300 | 13.5 |
| 6350 | 12.9 |
| 6400 | 13.0 |
| 6450 | 12.7 |
| 6500 | 13.1 |
| 6550 | 12.4 |
| 6600 | 12.3 |
| 6650 | 12.9 |
| 6700 | 12.8 |
| 6750 | 12.4 |

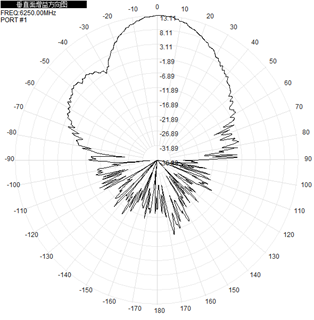

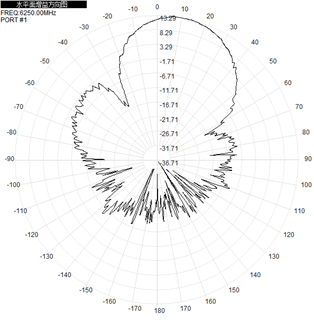

| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 6250MHz |  |  |  |
| 6500MHz |  |  |  |
| 6750MHz |  |  |  |
|
|
