| Brand Name : | Leenz |
| Model Number : | TZA2514U13-3PNF-MA |
| Certification : | RoHs |
| Payment Terms : | T/T |
| Supply Ability : | 5K per day |
| Delivery Time : | 15 days |
1. Specification
| A. Electrical Characteristics | |||
| Port | Port1 | Port2 | Port3 |
| Frequency | 2400-2500MHz | 3700-4200MHz | 5150-5850MHz |
| S.W.R. | <2.0 | <2.0 | <2.0 |
| Antenna Gain | 10dBi | 13dBi | 14dBi |
| Polarization | Vertical | Vertical | Vertical |
| Horizontal Beamwidth | 105±6° | 37±3° | 46±4° |
| Vertical Beamwidth | 25±2° | 35±5° | 34±2° |
| F/B | >20dB | >25dB | >23dB |
| Impedance | 50Ohm | 50Ohm | 50Ohm |
| Max. Power | 50W | 50W | 50W |
| B. Material & Mechanical Characteristics | |||
| Connector Type | N connector | ||
| Dimension | 290*205*40mm | ||
| Radome material | ASA | ||
| Mount Pole | ∅30-∅75 | ||
| Weight | 1.6Kg | ||
| C. Environmental | |||
| Operation Temperature | - 40 ˚C ~ + 85 ˚C | ||
| Storage Temperature | - 40 ˚C ~ + 85 ˚C | ||
| Operation Humidity | ＜95% | ||
| Rated Wind Velocity | 36.9m/s | ||
2. Antenna - S Parameter Test Data
2.1 VSWR
Port1
Port2
Port3
2.2 Total Efficiency & Gain:
| Port 1 | Port 2 | Port 3 | |||||
| Frequency(MHz) | Gain(dBi) | Frequency(MHz) | Gain(dBi) | Frequency(MHz) | Gain(dBi) | ||
| 2400 | 10.496 | 3700 | 13.032 | 5100 | 13.878 | ||
| 2410 | 10.589 | 3750 | 13.128 | 5150 | 14.082 | ||
| 2420 | 10.522 | 3800 | 13.178 | 5200 | 13.333 | ||
| 2430 | 10.455 | 3850 | 13.013 | 5250 | 13.544 | ||
| 2440 | 10.506 | 3900 | 13.056 | 5300 | 13.656 | ||
| 2450 | 10.475 | 3950 | 13.436 | 5350 | 13.758 | ||
| 2460 | 10.549 | 4000 | 13.135 | 5400 | 13.591 | ||
| 2470 | 10.623 | 4050 | 13.467 | 5450 | 13.419 | ||
| 2480 | 10.492 | 4100 | 13.566 | 5500 | 13.516 | ||
| 2490 | 10.345 | 4150 | 13.492 | 5550 | 13.322 | ||
| 2500 | 10.488 | 4200 | 13.534 | 5600 | 13.188 | ||
| 5650 | 13.185 | ||||||
| 5700 | 13.153 | ||||||
| 5750 | 13.243 | ||||||
| 5800 | 13.117 | ||||||
| 5850 | 13.175 | ||||||
| 5900 | 13.275 | ||||||
| Port 1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |

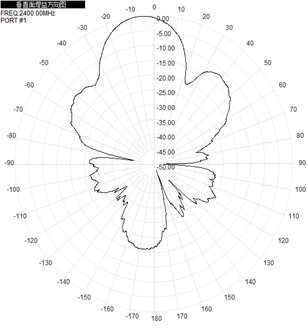

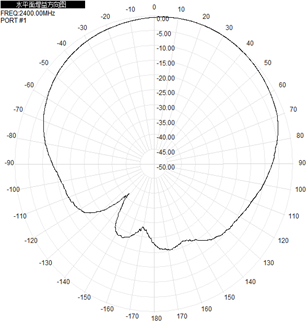

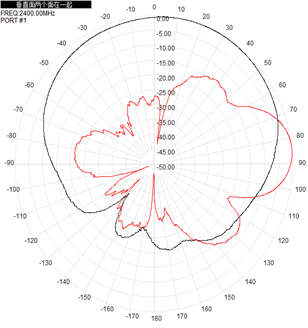

| 2400MHz |  |  |  |
| 2450MHz |  |  |  |

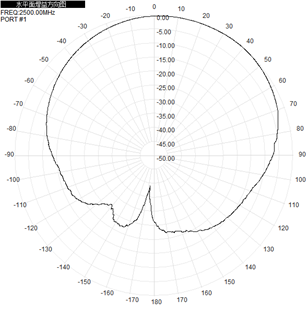

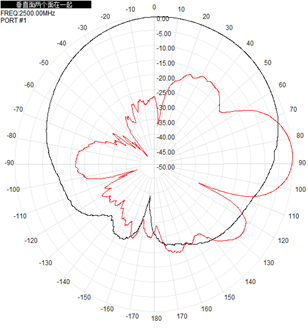

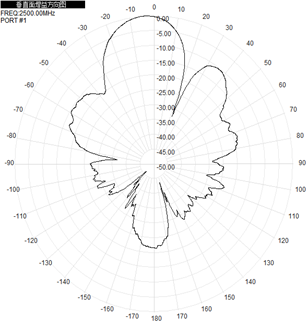

| 2500MHz |  |  |  |
| Port 2 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |

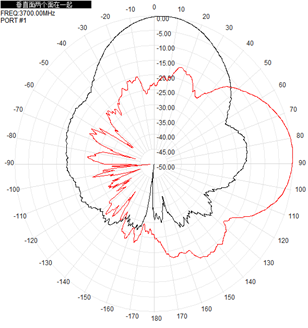

| 3700MHz |  |  |  |

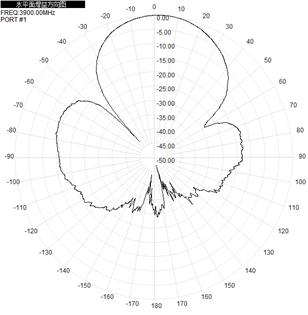

| 3900MHz |  |  |  |

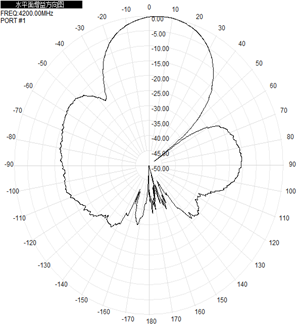

| 4200MHz |  |  |  |

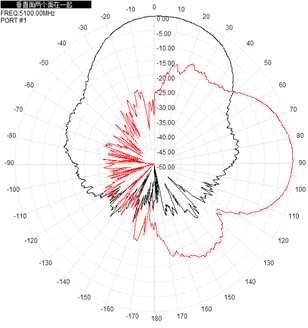

| Port 3 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 5150MHz |  |  |  |
| 5550MHz |  |  |  |
| 5900MHz |  |  |  |
|
|
