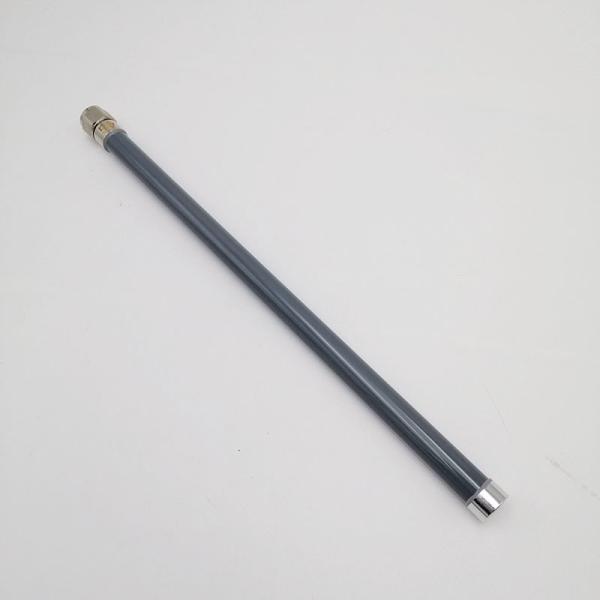

4G LTE omni outdoor AP base station gateway with external waterproof fiberglass antenna 16x350mm
1. Specification

2. Antenna - S Parameter Test Data
2.1 VSWR

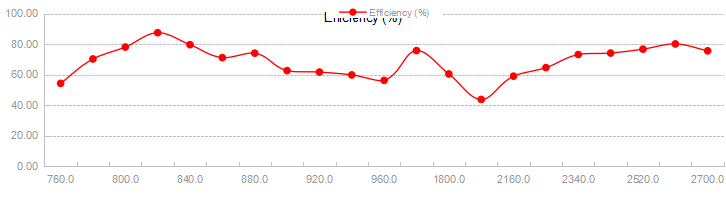

2.2 Total Efficiency & Gain:

Frequency(MHz)	760.0	780.0	800.0	820.0	840.0	860.0	880.0	900.0	920.0	940.0	960.0
Gain (dBi)	0.15	0.72	1.01	1.49	1.38	1.25	1.95	1.90	2.89	3.31	3.54
Efficiency (%)	54.28	70.29	78.11	87.48	79.63	71.16	74.10	62.66	61.68	59.82	56.25

Frequency(MHz)	1710.0	1800.0	1890.0	2160.0	2250.0	2340.0	2430.0	2520.0	2610.0	2700.0
Gain (dBi)	5.08	3.59	1.03	2.01	1.75	2.11	2.65	2.68	3.03	3.11
Efficiency (%)	75.75	60.43	43.73	59.02	64.59	73.18	74.16	76.73	80.12	75.62

	3D	2D-Horizontal	2D-Vertical
800MHz
880MHz
960MHz

	3D	2D-Horizontal	2D-Vertical
1710MHz
2250MHz
2700MHz
