N-JW 3G4G LTE GSM NB-Iot GPRS ATU DTU Omnidirectional 5dBi Outdoor
base station gateway Fiberglass waterproof antenna
1. Specification
| A. Electrical Characteristics | ||
| Frequency | 806-960MHz | 1710-2700MHz |
| Impedance | 50 Ohm | 50 Ohm |
| S.W.R. | <3.0 | <2.2 |
| Gain | 3dBi | 5dBi |
| Efficiency | ≈56% | ≈65% |
| Polarization | Linear | Linear |
| Horizontal Beamwidth | 360° | 360° |
| Vertical Beamwidth | 60° | 50° |
| Max Power | 50W | |
| B. Material & Mechanical Characteristics | ||
| Connector Type | N -JW | |
| Dimension | Φ18.5*250mm | |
| Weight | 0.14Kg | |
| Radome material | Fiberglass | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 85˚C | |
| Storage Temperature | - 40 ˚C ~ + 85˚C | |
2. Antenna - S Parameter Test Data

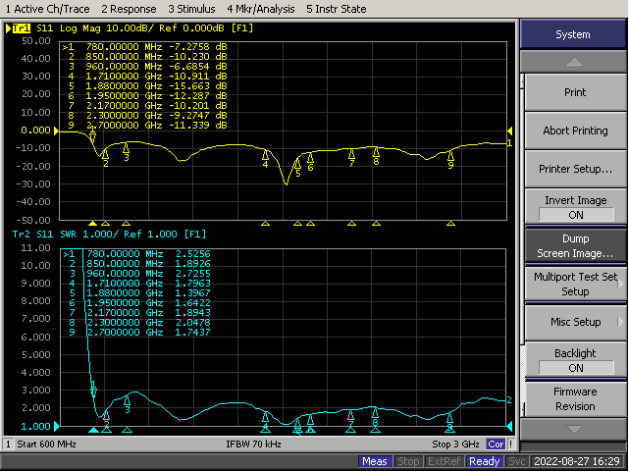

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | 780.0 | 800.0 | 820.0 | 840.0 | 860.0 | 880.0 | 900.0 | 920.0 | 940.0 | 960.0 |
| Gain (dBi) | 0.75 | 1.37 | 1.97 | 2.01 | 2.12 | 2.62 | 2.30 | 2.29 | 2.13 | 1.88 |
| Efficiency (%) | 67.98 | 76.64 | 84.13 | 76.47 | 69.52 | 72.58 | 60.61 | 60.60 | 58.12 | 53.95 |
| Frequency(MHz) | 1710.0 | 1800.0 | 1890.0 | 1980.0 | 2070.0 | 2160.0 | 2250.0 | 2340.0 | 2430.0 | 2520.0 | 2610.0 | 2700.0 |
| Gain (dBi) | 4.44 | 4.71 | 3.30 | 2.08 | 1.25 | 1.41 | 1.67 | 1.88 | 1.97 | 1.79 | 2.37 | 2.59 |
| Efficiency (%) | 76.88 | 79.96 | 76.24 | 75.14 | 71.40 | 73.55 | 79.01 | 74.44 | 77.22 | 78.16 | 83.92 | 83.96 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 800MHz |  |  |  |
| 880MHz |  |  |  |
| 960MHz |  |  |  |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1710MHz |  |  |  |
| 2250MHz |  |  |  |
| 2700MHz |  |  |  |
