2G3G4G LTE GSM NB-Iot omnidirectional outdoor AP base station
gateway with external waterproof fiberglass antenna
1. Specification
| A. Electrical Characteristics | ||
| Frequency | 806-960MHz | 1710-2700MHz |
| Impedance | 50 Ohm | 50 Ohm |
| S.W.R. | <2 | <2 |
| Gain | 3.5dBi | 5dBi |
| Efficiency | ≈56% | ≈64% |
| Polarization | Linear | Linear |
| Horizontal Beamwidth | 360° | 360° |
| Vertical Beamwidth | 77° | 28° |
| Max Power | 50W | |
| B. Material & Mechanical Characteristics | ||
| Connector Type | N Male | |
| Dimension | Φ20*250mm | |
| Weight | 0.1Kg | |
| Radome material | Fiberglass | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 85˚C | |
| Storage Temperature | - 40 ˚C ~ + 85˚C | |
2. Antenna - S Parameter Test Data
2.1 VSWR

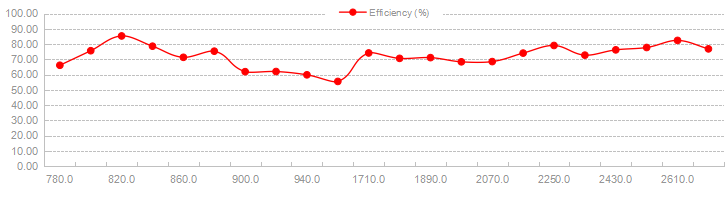

2.2 Total Efficiency & Gain:
| Frequency(MHz) | 800.0 | 820.0 | 840.0 | 860.0 | 880.0 | 900.0 | 920.0 | 940.0 | 960.0 |
| Gain (dBi) | 1.10 | 1.51 | 1.39 | 1.36 | 2.08 | 2.21 | 2.88 | 3.31 | 3.39 |
| Efficiency (%) | 75.69 | 85.37 | 78.65 | 71.37 | 75.39 | 61.96 | 62.06 | 59.90 | 55.56 |
| Frequency(MHz) | 1710.0 | 1800.0 | 1890.0 | 1980.0 | 2070.0 | 2160.0 | 2250.0 | 2340.0 | 2430.0 | 2520.0 | 2610.0 | 2700.0 |
| Gain (dBi) | 5.13 | 4.20 | 3.12 | 2.81 | 3.22 | 2.99 | 2.57 | 2.35 | 2.62 | 2.94 | 3.10 | 3.34 |
| Efficiency (%) | 74.22 | 70.67 | 71.17 | 68.42 | 68.57 | 74.13 | 79.12 | 72.79 | 76.25 | 77.80 | 82.44 | 76.90 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 800MHz |  |  |  |
| 880MHz |  |  |  |
| 960MHz |  |  |  |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1710MHz |  |  |  |
| 2250MHz |  |  |  |
| 2700MHz |  |  |  |
|
|
