| Brand Name : | Leenz |
| Model Number : | LZANT-10091-A |
| Certification : | RoHs |
| Payment Terms : | T/T |
| Supply Ability : | 5K per day |
| Delivery Time : | 15 days |
2G3G4G LTE GSM NB-Iot omnidirectional outdoor AP base station
gateway with external waterproof fiberglass antenna
1. Specification
| A. Electrical Characteristics | ||
| Frequency | 698-960MHz | 1710-2700MHz |
| Impedance | 50 Ohm | 50 Ohm |
| S.W.R. | <2 | <2 |
| Gain | 2.5dBi | 5dBi |
| Efficiency | ≈56% | ≈64% |
| Polarization | Linear | Linear |
| Horizontal Beamwidth | 360° | 360° |
| Vertical Beamwidth | 40±7° | 22±6° |
| Max Power | 50W | |
| B. Material & Mechanical Characteristics | ||
| Connector Type | N Male | |
| Dimension | Φ20*150mm | |
| Weight | 0.1Kg | |
| Radome material | Fiberglass | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 85˚C | |
| Storage Temperature | - 40 ˚C ~ + 85˚C | |
2. Antenna - S Parameter Test Data

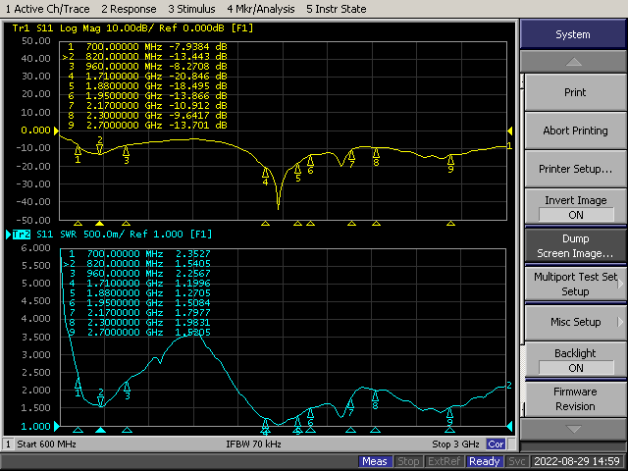

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | 700.0 | 720.0 | 740.0 | 760.0 | 780.0 | 800.0 | 820.0 | 840.0 | 860.0 | 880.0 | 900.0 | 920.0 | 940.0 | 960.0 |
| Gain (dBi) | 1.17 | 1.64 | 1.79 | 2.23 | 1.81 | 1.62 | 1.49 | 0.97 | 1.13 | 1.88 | 1.75 | 2.30 | 2.46 | 1.90 |
| Efficiency (%) | 61.54 | 67.26 | 66.18 | 75.67 | 65.26 | 58.38 | 58.59 | 48.92 | 46.10 | 51.19 | 44.34 | 47.10 | 47.46 | 40.66 |
| Frequency(MHz) | 1710.0 | 1800.0 | 1890.0 | 1980.0 | 2070.0 | 2160.0 | 2250.0 | 2340.0 | 2430.0 | 2520.0 | 2610.0 | 2700.0 |
| Gain (dBi) | 5.35 | 5.45 | 5.28 | 5.13 | 5.09 | 6.24 | 5.61 | 4.59 | 3.84 | 3.79 | 3.90 | 3.66 |
| Efficiency (%) | 68.96 | 69.45 | 62.00 | 58.95 | 60.55 | 61.09 | 66.99 | 62.94 | 61.53 | 58.78 | 65.55 | 69.68 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 700MHz |  |  |  |
| 880MHz |  |  |  |
| 960MHz |  |  |  |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1710MHz |  |  |  |
| 2250MHz |  |  |  |
| 2700MHz |  |  |  |
|
|
