2G3G4G LTE GSM NB-Iot omnidirectional outdoor AP base station
gateway with external waterproof fiberglass antenna
1. Specification
| A. Electrical Characteristics | ||
| Frequency | 806-960MHz | 1710-2700MHz |
| Impedance | 50 Ohm | 50 Ohm |
| S.W.R. | <2 | <2 |
| Gain | 2.5dBi | 6dBi |
| Efficiency | ≈56% | ≈64% |
| Polarization | Linear | Linear |
| Horizontal Beamwidth | 360° | 360° |
| Vertical Beamwidth | 80° | 37° |
| Max Power | 50W | |
| B. Material & Mechanical Characteristics | ||
| Connector Type | N Male | |
| Dimension | Φ20*200mm | |
| Weight | 0.11Kg | |
| Radome material | Fiberglass | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 85˚C | |
| Storage Temperature | - 40 ˚C ~ + 85˚C | |
2. Antenna - S Parameter Test Data

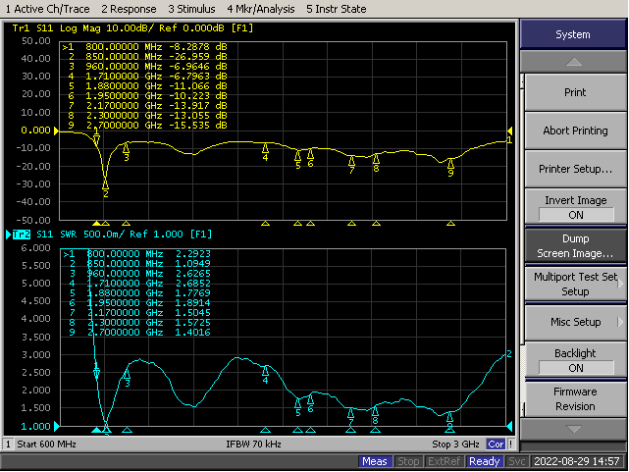

2.1 VSWR

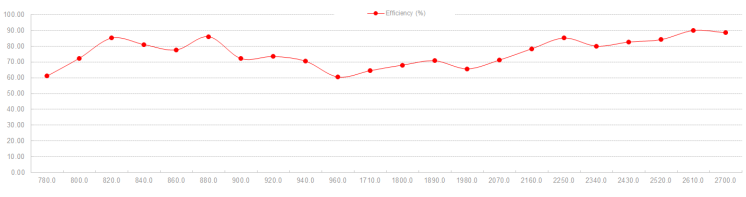

2.2 Total Efficiency & Gain:
| Frequency(MHz) | 800.0 | 820.0 | 840.0 | 860.0 | 880.0 | 900.0 | 920.0 | 940.0 | 960.0 |
| Gain (dBi) | 0.91 | 1.47 | 1.41 | 1.64 | 2.15 | 1.99 | 2.37 | 2.63 | 2.37 |
| Efficiency (%) | 72.40 | 85.16 | 81.07 | 77.69 | 86.06 | 72.21 | 73.50 | 70.48 | 60.48 |
| Frequency(MHz) | 1710.0 | 1800.0 | 1890.0 | 1980.0 | 2070.0 | 2160.0 | 2250.0 | 2340.0 | 2430.0 | 2520.0 | 2610.0 | 2700.0 |
| Gain (dBi) | 6.04 | 5.88 | 4.74 | 2.77 | 3.22 | 3.24 | 2.67 | 1.87 | 2.12 | 2.65 | 3.02 | 3.05 |
| Efficiency (%) | 64.52 | 68.06 | 70.76 | 65.67 | 71.27 | 78.41 | 85.18 | 80.07 | 82.66 | 84.19 | 89.97 | 88.56 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 800MHz |  |  |  |
| 880MHz |  |  |  |
| 960MHz |  |  |  |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1710MHz |  |  |  |
| 2250MHz |  |  |  |
| 2700MHz |  |  |  |
|
|
