N Male 2.4G 2400-2500M omni 2dBi outdoor AP base station Gateway Bluetooth WIFI external Fiberglass waterproof antenna
1. Specification
| A. Electrical Characteristics | |
| Frequency | 2400-2500MHz |
| Impedance | 50 Ohm |
| S.W.R. | <2.0 |
| Antenna Gain | 2.5dBi |
| Efficiency | ≈84% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 70±5° |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N Male |
| Dimension | Φ16*100mm |
| Weight | 0.065Kg |
| Radome material | Fiberglass |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
| Rated Wind Velocity | 36.9m/s |
| Lighting Protection | DC Ground |
2. Antenna - S Parameter Test Data
2.1 VSWR

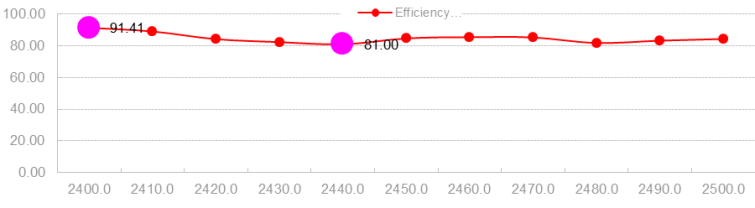

2.2 Total Efficiency & Gain:
| Frequency (MHz) | 2400.0 | 2410.0 | 2420.0 | 2430.0 | 2440.0 | 2450.0 | 2460.0 | 2470.0 | 2480.0 | 2490.0 | 2500.0 |
| Gain (dBi) | 2.45 | 2.33 | 2.18 | 2.17 | 2.11 | 2.35 | 2.39 | 2.37 | 2.25 | 2.37 | 2.30 |
| Efficiency (%) | 91.41 | 89.10 | 84.26 | 82.37 | 81.00 | 84.73 | 85.50 | 85.31 | 81.83 | 83.29 | 84.37 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 2400MHz |
|  |  |
| 2450MHz |  |  |  |
| 2500MHz |  |  |  |
|
|
