| Brand Name : | Leenz |
| Model Number : | LZANT-10496-A |
| Certification : | RoHs |
| Payment Terms : | T/T |
| Supply Ability : | 5K per day |
| Delivery Time : | 15 days |

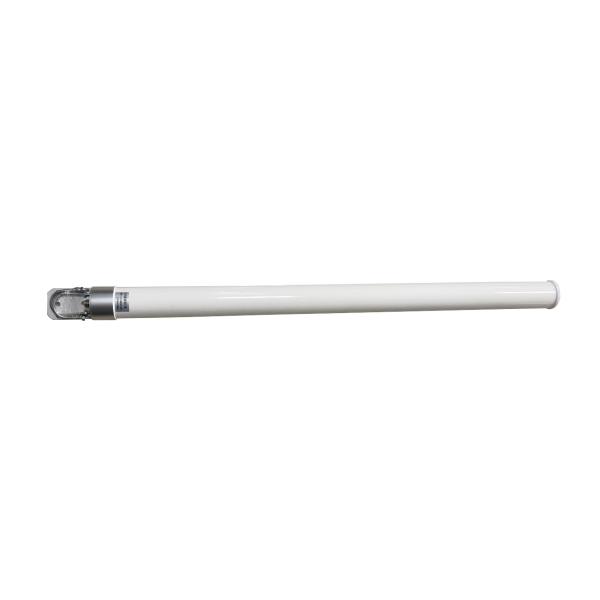

Outdoor Waterproof Omnidirectional Antenna Fiberglass Antenna 4G LTE 60x1000
1. Specification
| A. Electrical Characteristics | |||
| Frequency | 617-960MHz | 1427-1517MHz | 1710-2700MHz |
| S.W.R. | <3.2 | <3.2 | <3.2 |
| Antenna Gain | 2.5dBi | 5dBi | 8dBi |
| Efficiency | ≈70% | ≈54% | ≈69% |
| Polarization | Linear | Linear | Linear |
| Horizontal Beamwidth | 360° | 360° | 360° |
| Vertical Beamwidth | 70°±30° | 24°±2° | 20°±10° |
| Impedance | 50 Ohm | 50 Ohm | 50 Ohm |
| Max Power | 50W | 50W | 50W |
| B. Material & Mechanical Characteristics | |||
| Connector Type | N connector | ||
| Dimension | Φ60*1000mm | ||
| Weight | 1.1Kg | ||
| Radome material | Fiberglass | ||
| C. Environmental | |||
| Operation Temperature | - 40 ˚C ~ + 80 ˚C | ||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | ||
| Rated Wind Velocity | 36.9m/s | ||
| Lighting Protection | DC Ground | ||
2. Antenna - S Parameter Test Data
2.1 VSWR

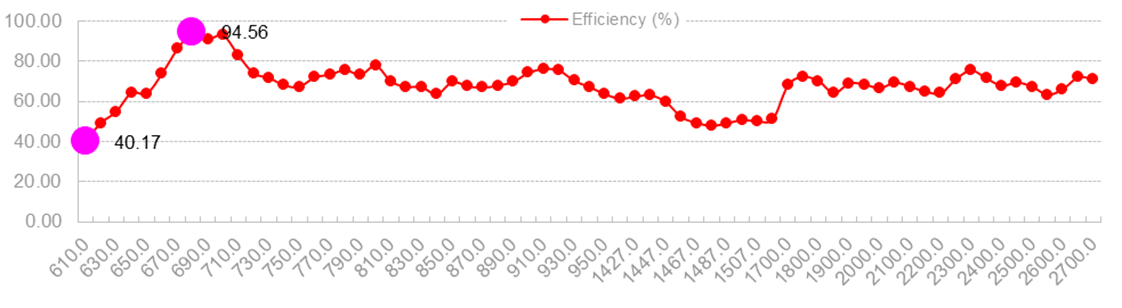

2.2 Total Efficiency & Gain:
| Frequency(MHz) | 610.0 | 620.0 | 630.0 | 640.0 | 650.0 | 660.0 | 670.0 | 680.0 | 690.0 | 700.0 | 710.0 | 720.0 | 730.0 | 740.0 | 750.0 | 760.0 |
| Gain (dBi) | -1.57 | -0.13 | 1.11 | 2.79 | 3.15 | 2.03 | 2.02 | 2.30 | 2.28 | 2.74 | 2.50 | 0.65 | 0.31 | 0.72 | 1.28 | 1.94 |
| Efficiency (%) | 40.17 | 49.31 | 54.88 | 64.39 | 63.92 | 73.95 | 86.10 | 94.56 | 91.13 | 93.13 | 83.09 | 74.11 | 71.86 | 68.07 | 67.40 | 72.07 |
| Frequency(MHz) | 780.0 | 800.0 | 820.0 | 840.0 | 850.0 | 860.0 | 870.0 | 880.0 | 890.0 | 900.0 | 910.0 | 920.0 | 930.0 | 940.0 | 950.0 | 960.0 |
| Gain (dBi) | 1.68 | 1.79 | 1.46 | 1.13 | 1.31 | 1.52 | 1.61 | 1.44 | 1.76 | 2.23 | 2.61 | 2.66 | 2.18 | 1.72 | 1.59 | 1.76 |
| Efficiency (%) | 75.72 | 77.86 | 67.35 | 63.59 | 69.71 | 67.64 | 66.90 | 67.99 | 69.82 | 74.34 | 76.26 | 75.49 | 70.31 | 67.22 | 63.64 | 61.35 |
| Frequency(MHz) | 1427.0 | 1437.0 | 1447.0 | 1457.0 | 1467.0 | 1477.0 | 1487.0 | 1497.0 | 1507.0 | 1517.0 |
| Gain (dBi) | 4.44 | 4.73 | 4.84 | 4.48 | 4.26 | 3.93 | 3.85 | 3.95 | 3.85 | 3.87 |
| Efficiency (%) | 62.44 | 63.02 | 59.68 | 52.21 | 49.31 | 47.83 | 49.04 | 50.75 | 50.02 | 51.14 |
| Frequency(MHz) | 1700.0 | 1750.0 | 1800.0 | 1850.0 | 1900.0 | 1950.0 | 2000.0 | 2050.0 | 2100.0 | 2150.0 | 2200.0 |
| Gain (dBi) | 4.99 | 5.89 | 5.78 | 5.33 | 5.55 | 5.95 | 5.72 | 6.12 | 5.63 | 6.45 | 6.71 |
| Efficiency (%) | 68.18 | 72.33 | 70.17 | 64.21 | 68.99 | 68.55 | 66.65 | 69.46 | 67.34 | 65.00 | 64.10 |
| Frequency(MHz) | 2250.0 | 2300.0 | 2350.0 | 2400.0 | 2450.0 | 2500.0 | 2550.0 | 2600.0 | 2650.0 | 2700.0 |
| Gain (dBi) | 7.62 | 8.13 | 8.01 | 7.63 | 7.78 | 7.97 | 7.90 | 8.09 | 8.35 | 8.34 |
| Efficiency (%) | 71.29 | 75.53 | 71.47 | 67.92 | 69.52 | 67.32 | 63.37 | 66.22 | 72.11 | 71.09 |

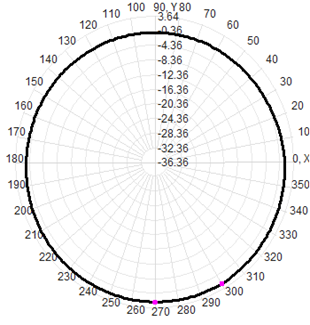

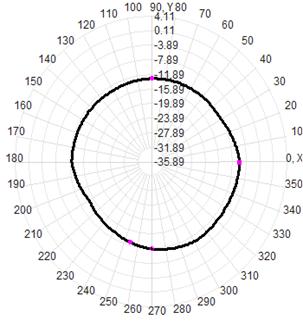

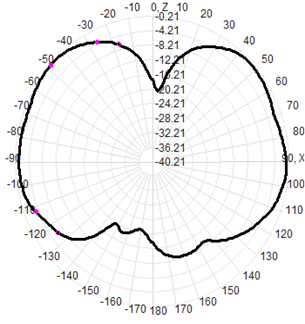

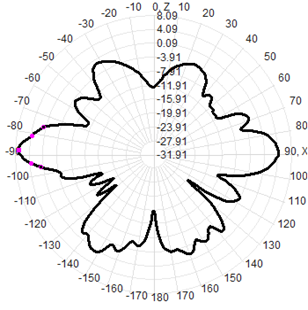

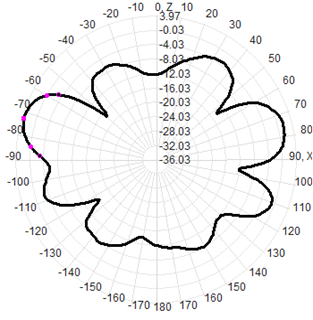

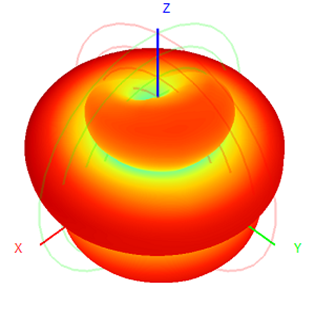

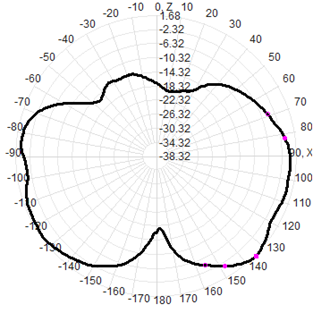

| 3D | 2D-Horizontal | 2D-Vertical | |
| 617MHz |  |  | |
| 800MHz |  |  |  |
| 960MHz |  |  |  |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1427MHz |  |  |  |
| 1467MHz |  |  |  |
| 1517MHz |  |  |  |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1700MHz |  |  |  |
| 2250MHz |  |  |  |
| 2700MHz |  |  |  |
|
|
