Outdoor Waterproof Omnidirectional Antenna Fiberglass Antenna WIFI 5.8GHz 10-11dBi 60x600
1. Specification
| A. Electrical Characteristics | ||
| Port | Port1 | Port2 |
| Frequency | 5150-5850MHz | 5150-5850MHz |
| S.W.R. | <2.0 | <2.0 |
| Efficiency | ≈50% | ≈53% |
| Antenna Gain | 10dBi | 11dBi |
| Polarization | Linear | Linear |
| Horizontal Beamwidth | 130-360° | 50-210° |
| Vertical Beamwidth | 6-8° | 6-7° |
| Impedance | 50 Ohm | 50 Ohm |
| Max Power | 50W | 50W |
| B. Material & Mechanical Characteristics | ||
| Connector Type | N connector | |
| Cable Type | RG303 Cable | |
| Dimension | Φ60*600mm | |
| Weight | 0.6Kg | |
| Radome material | Fiberglass | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 80 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |
| Rated Wind Velocity | 36.9m/s | |
| Lighting Protection | DC Ground | |
2. Antenna - S Parameter Test Data
2.1 VSWR
Port1
Port2
2.2 Total Efficiency & Gain:
| Port 1 | Port 2 | |||
| Frequency (MHz) | Gain (dBi) | Frequency (MHz) | Gain (dBi) | |
| 5150.0 | 7.09 | 5150.0 | 10.38 | |
| 5200.0 | 7.74 | 5200.0 | 9.94 | |
| 5250.0 | 8.23 | 5250.0 | 9.94 | |
| 5300.0 | 7.63 | 5300.0 | 8.69 | |
| 5350.0 | 8.30 | 5350.0 | 9.58 | |
| 5400.0 | 9.72 | 5400.0 | 10.35 | |
| 5450.0 | 9.31 | 5450.0 | 10.75 | |
| 5500.0 | 8.89 | 5500.0 | 9.63 | |
| 5550.0 | 9.33 | 5550.0 | 9.31 | |
| 5600.0 | 9.53 | 5600.0 | 10.92 | |
| 5650.0 | 8.82 | 5650.0 | 11.51 | |
| 5700.0 | 8.29 | 5700.0 | 10.55 | |
| 5750.0 | 7.92 | 5750.0 | 9.30 | |
| 5800.0 | 7.96 | 5800.0 | 10.92 | |
| 5850.0 | 8.16 | 5850.0 | 11.13 | |

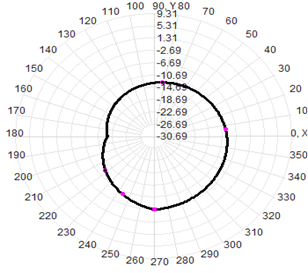

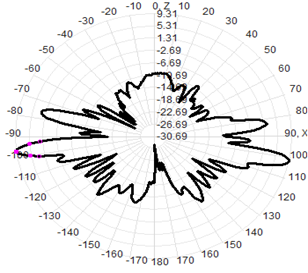

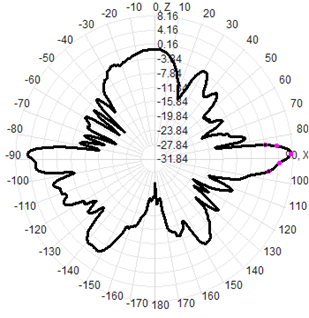

| Port1 | 3D | 2D-Horizontal | 2D-Vertical |
| 5150MHz |  |  |  |
| 5500MHz |  |  |  |
| 5850MHz |  |  |  |

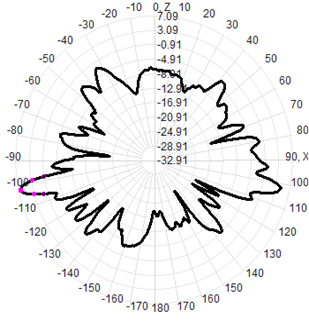

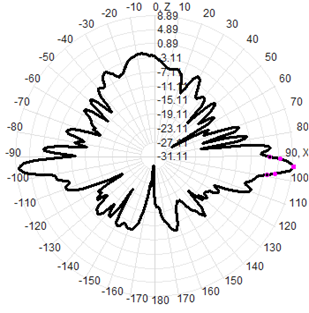

| Port 2 | 3D | 2D-Horizontal | 2D-Vertical |
| 5150MHz |  |  |  |
| 5500MHz |  |  |  |
| 5850MHz |  |  |  |
|
|
