2*N female 5.8G 5150-5850M wifi 21dBi dual-polarized directional antenna 305x305x25mm
1. Specification
| A. Electrical Characteristics | |
| Frequency | 5150-5850MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 21dBi |
| Polarization | H+V |
| Horizontal Beamwidth | 12±3° |
| Vertical Beamwidth | 12±3° |
| F/B | >27dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | 2*N Female connector |
| Dimension | 305*305*25mm |
| Radome material | ABS |
| Weight | 2.3Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

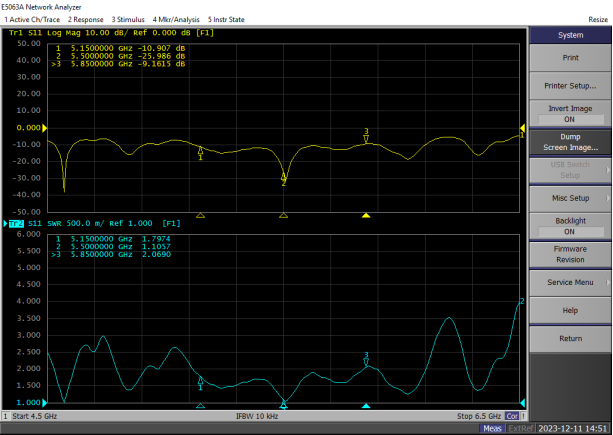

2.1 VSWR
2.2 Total Efficiency & Gain:
| Port 1(H) | Port 2(V) | |||
| Frequency(MHz) | Gain(dBi) | Frequency(MHz) | Gain(dBi) | |
| 5150 | 20.4 | 5150 | 19.4 | |
| 5200 | 20.7 | 5200 | 19.0 | |
| 5250 | 21.1 | 5250 | 19.0 | |
| 5300 | 21.0 | 5300 | 19.5 | |
| 5350 | 21.1 | 5350 | 18.6 | |
| 5400 | 21.1 | 5400 | 18.7 | |
| 5450 | 21.2 | 5450 | 19.9 | |
| 5500 | 21.9 | 5500 | 20.5 | |
| 5550 | 21.9 | 5550 | 19.9 | |
| 5600 | 21.7 | 5600 | 19.8 | |
| 5650 | 21.4 | 5650 | 20.1 | |
| 5700 | 20.2 | 5700 | 19.0 | |
| 5750 | 19.4 | 5750 | 18.5 | |
| 5800 | 20.4 | 5800 | 19.1 | |
| 5850 | 20.5 | 5850 | 18.4 | |

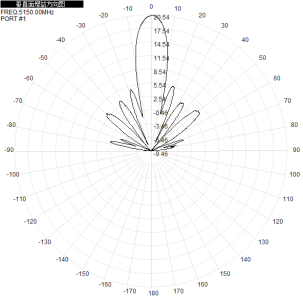

| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 5150MHz |  |  |  |
| 5500MHz |  |  |  |
| 5850MHz |  |  |  |
|
|
