Indoor Antenna External Antenna 5G Antenna 3-4.5dBI 13x221mm
1. Specification
| A. Electrical Characteristics | |||
| Frequency | 600-960MHz | 1710-2700MHz | 2700-6000MHz |
| Impedance | 50 Ohm | 50 Ohm | 50 Ohm |
| S.W.R. | <4.5 | <2.5 | <3.0 |
| Gain | 3.0dBi | 4.0dBi | 4.5dBi |
| Efficiency | ≈37% | ≈62% | ≈59% |
| Polarization | Linear | ||
| Max Power | 50W | ||
| B. Material & Mechanical Characteristics | |||
| Connector Type | SMA connector | ||
| Dimension | Φ13*221mm | ||
| Weight | 0.03Kg | ||
| Radome material | ABS | ||
| C. Environmental | |||
| Operation Temperature | - 40 ˚C ~ + 80 ˚C | ||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | ||
2. Antenna - S Parameter Test Data
2.1 VSWR

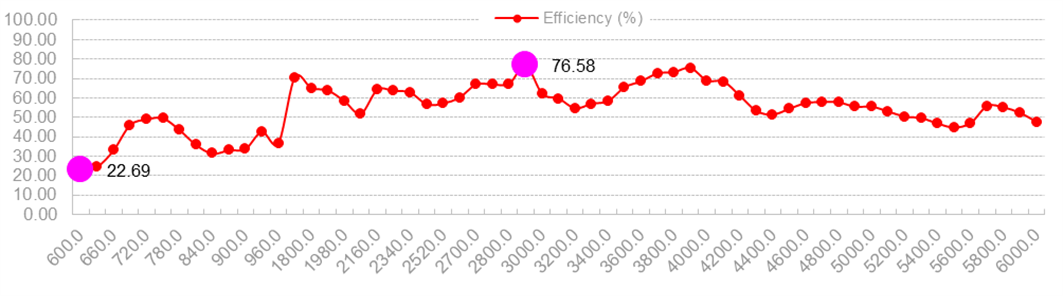

2.2 Total Efficiency & Gain:
| Frequency (MHz) | 600.0 | 630.0 | 660.0 | 690.0 | 720.0 | 750.0 | 780.0 | 810.0 | 840.0 | 870.0 | 900.0 | 930.0 | 960.0 |
| Gain (dBi) | -0.03 | 0.90 | 1.67 | 2.98 | 2.35 | 1.96 | 1.21 | 0.52 | 0.09 | 0.35 | 0.98 | 1.94 | 1.68 |
| Efficiency (%) | 22.69 | 24.61 | 33.00 | 45.90 | 48.83 | 49.42 | 43.42 | 35.86 | 31.31 | 33.06 | 33.72 | 42.55 | 36.68 |
| Frequency (MHz) | 1710.0 | 1800.0 | 1890.0 | 1980.0 | 2070.0 | 2160.0 | 2250.0 | 2340.0 | 2430.0 | 2520.0 | 2610.0 | 2700.0 |
| Gain (dBi) | 2.26 | 2.05 | 1.79 | 1.45 | 1.50 | 3.68 | 4.12 | 3.10 | 3.01 | 3.41 | 3.79 | 3.90 |
| Efficiency (%) | 70.45 | 64.90 | 63.71 | 58.24 | 51.81 | 64.02 | 63.50 | 62.67 | 56.57 | 57.01 | 60.16 | 66.78 |
| Frequency (MHz) | 2800.0 | 2900.0 | 3000.0 | 3100.0 | 3200.0 | 3300.0 | 3400.0 | 3500.0 | 3600.0 | 3700.0 | 3800.0 | 3900.0 |
| Gain (dBi) | 3.28 | 3.60 | 2.30 | 3.00 | 1.68 | 2.36 | 2.41 | 2.95 | 3.21 | 3.50 | 3.29 | 2.96 |
| Efficiency (%) | 67.09 | 76.58 | 62.05 | 59.61 | 54.55 | 56.90 | 58.26 | 65.30 | 68.38 | 72.44 | 73.09 | 75.26 |
| Frequency (MHz) | 4000.0 | 4100.0 | 4200.0 | 4300.0 | 4400.0 | 4500.0 | 4600.0 | 4700.0 | 4800.0 | 4900.0 | 5000.0 | 5100.0 |
| Gain (dBi) | 2.50 | 2.37 | 2.45 | 2.30 | 2.14 | 1.79 | 2.46 | 3.02 | 2.48 | 4.06 | 4.54 | 3.55 |
| Efficiency (%) | 68.75 | 68.28 | 60.96 | 53.22 | 51.38 | 54.34 | 57.23 | 57.80 | 57.63 | 55.33 | 55.41 | 52.91 |
| Frequency (MHz) | 5200.0 | 5300.0 | 5400.0 | 5500.0 | 5600.0 | 5700.0 | 5800.0 | 5900.0 | 6000.0 |
| Gain (dBi) | 2.55 | 2.84 | 2.93 | 2.46 | 2.47 | 3.25 | 3.00 | 1.99 | 2.01 |
| Efficiency (%) | 50.35 | 49.57 | 46.75 | 44.73 | 47.05 | 55.75 | 55.04 | 52.22 | 47.60 |

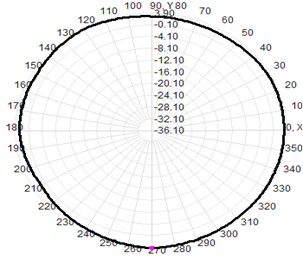

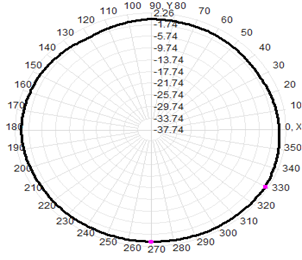

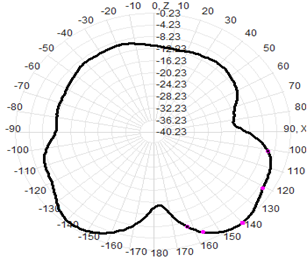

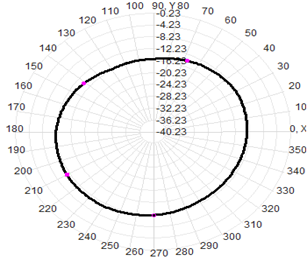

| 3D | 2D-Horizontal | 2D-Vertical | |
| 600MHz |  |  |  |
| 780MHz |  |  |  |
| 960MHz |  |  |  |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1710MHz |  |  |  |
| 2250MHz |  |  |  |
| 2700MHz |  |  |  |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 3300MHz |  |  |  |
| 4000MHz |  |  |  |
| 5000MHz |  |  |  |
|
|
