UWB Antenna Outdoor Panel antenna 3700-4200MHz 9 dBi 100x100x23
1. Specification
| A. Electrical Characteristics | |
| Frequency | 3700-4200MHz |
| S.W.R. | <2.0 |
| Antenna Gain | 9dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 55-75° |
| Vertical Beamwidth | 28-44° |
| F/B | >14dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Cable Type | Mine Cable, length 1 meter |
| Connector Type | SMA connector |
| Dimension | 100*100*23mm |
| Radome material | ABS |
| Weight | 0.3Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 3700 | 8.6978 |
| 3750 | 8.2188 |
| 3800 | 8.5625 |
| 3850 | 8.1175 |
| 3900 | 8.8527 |
| 3950 | 8.6745 |
| 4000 | 8.6764 |
| 4050 | 8.6473 |
| 4100 | 8.2032 |
| 4150 | 7.8865 |
| 4200 | 8.6568 |

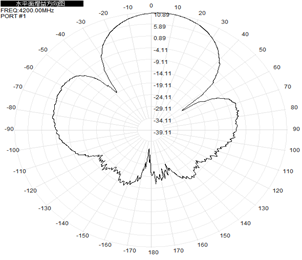

| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 3700MHz |  |  |  |
| 3950MHz |  |  |  |
| 4200MHz |  |  |  |
|
|
