UWB Antenna Outdoor Flat Panel antenna 3700-4200MHz 17 dBi N connector 220x220x25
1. Specification
| A. Electrical Characteristics | |
| Frequency | 3700-4200MHz |
| S.W.R. | <2.0 |
| Antenna Gain | 17dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 13-15° |
| Vertical Beamwidth | 23-25° |
| F/B | >24dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N connector |
| Dimension | 220*220*25mm |
| Radome material | ABS |
| Weight | 1.09Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 3700 | 16.87 |
| 3750 | 16.81 |
| 3800 | 17.08 |
| 3850 | 17.05 |
| 3900 | 17.16 |
| 3950 | 16.87 |
| 4000 | 16.73 |
| 4050 | 17.16 |
| 4100 | 17.17 |
| 4150 | 16.74 |
| 4200 | 16.42 |

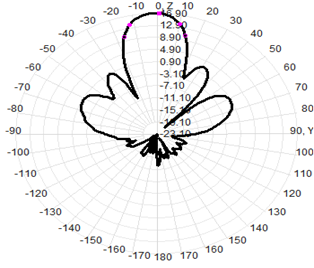

| 3D | 2D-Horizontal | 2D-Vertical | |
| 3700MHz |  |  |  |
| 3950MHz |  |  |  |
| 4200MHz |  |  |  |
|
|
