Outdoor Waterproof Directional Antenna Flat Panel Antenna UWB Antenna 3700-4200MHz 9 DBi 97x97x23
1. Specification
| A. Electrical Characteristics | |
| Frequency | 3700-4200MHz |
| S.W.R. | <1.6 |
| Antenna Gain | 10dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 73±3° |
| Vertical Beamwidth | 68±13° |
| F/B | >16dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N connector |
| Dimension | 97*97*23mm |
| Radome material | ABS |
| Weight | 0.11Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 3700 | 9.8 |
| 3750 | 9.7 |
| 3800 | 9.8 |
| 3850 | 9.9 |
| 3900 | 9.9 |
| 3950 | 9.9 |
| 4000 | 9.6 |
| 4050 | 9.8 |
| 4100 | 9.6 |
| 4150 | 9.3 |
| 4200 | 9.0 |
| 2D-Horizontal | 2D-Vertical | Horizontal & Vertical | |

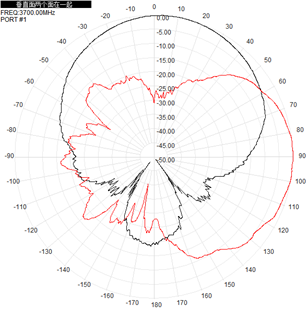

| 3700MHz |  |  |  |

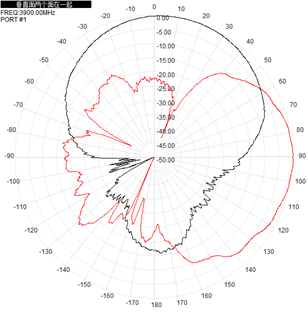

| 3900MHz |  |  |  |

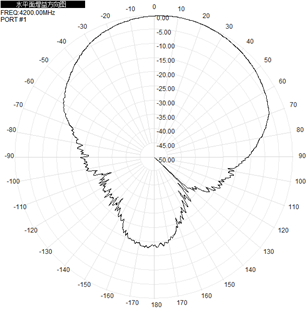

| 4200MHz |  |  |  |
|
|
