Satellite Positioning Antenna Outdoor IP67 GPS GNSS Beidou Antenna 1559-1606 MHz 20 dBi
1. Specification
| A. Electrical Characteristics | ||
| Frequency | 1559-1606MHz | |
| VSWR | <2.0 | |
| Peak Gain | 0dBi | |
| Impedance | 50Ohm | |
| Polarization | RHCP | |
| B. LNA and Filter Electrical Properties | ||
| Frequency | 1559-1606MHz | |
| VSWR | <2.0 | |
| LNA Gain | 20dBi | |
| Impedance | 50Ohm | |
| Polarization | RHCP | |
| 10dB Bandwidth | ±5MHz | |
| Noise Figure | ≤1.5dB | |
| In-Band Flatness (dB) | ±1dB | |
| Operation Voltage | 3-5 V DC | |
| Operation Current | ≤5mA | |
| C. Material & Mechanical Characteristics | ||
| Connector Type | N connector | |
| Dimension | Φ16x100mm | |
| Radome material | Fiberglass | |
| Waterproof | IP67 | |
| Weight | 0.065Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
2. Antenna - S Parameter Test Data

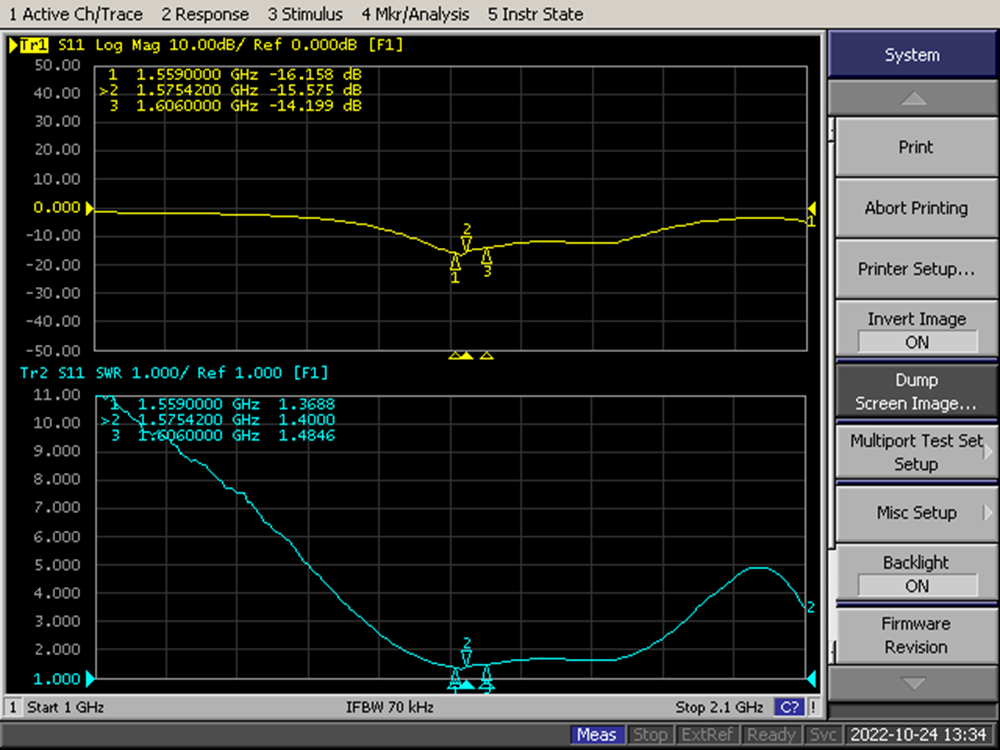

2.1 VSWR
2.2 LNA Gain:
| Frequency (MHz) | Gain (dBi) | Frequency (MHz) | Gain (dBi) | |
| 1559.0 | 19.91 | 1583.0 | 20.36 | |
| 1560.0 | 19.94 | 1584.0 | 20.43 | |
| 1561.0 | 19.77 | 1585.0 | 20.59 | |
| 1562.0 | 20.03 | 1586.0 | 20.44 | |
| 1563.0 | 19.85 | 1587.0 | 20.39 | |
| 1564.0 | 19.79 | 1588.0 | 20.40 | |
| 1565.0 | 19.62 | 1589.0 | 20.43 | |
| 1566.0 | 19.65 | 1590.0 | 20.47 | |
| 1567.0 | 19.47 | 1591.0 | 21.23 | |
| 1568.0 | 19.60 | 1592.0 | 21.82 | |
| 1569.0 | 19.77 | 1593.0 | 22.19 | |
| 1570.0 | 20.06 | 1594.0 | 22.25 | |
| 1571.0 | 20.25 | 1595.0 | 22.07 | |
| 1572.0 | 20.39 | 1596.0 | 21.80 | |
| 1573.0 | 20.61 | 1597.0 | 21.40 | |
| 1574.0 | 20.76 | 1598.0 | 20.91 | |
| 1575.0 | 20.79 | 1599.0 | 20.45 | |
| 1576.0 | 20.64 | 1600.0 | 20.07 | |
| 1577.0 | 20.57 | 1601.0 | 20.12 | |
| 1578.0 | 20.39 | 1602.0 | 20.17 | |
| 1579.0 | 20.41 | 1603.0 | 20.34 | |
| 1580.0 | 20.40 | 1604.0 | 20.55 | |
| 1581.0 | 20.24 | 1605.0 | 20.82 | |
| 1582.0 | 20.29 | 1606.0 | 20.76 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1559MHz |  |  |  |
| 1561MHz |  |  |  |
| 1575MHz |  |  |  |
|
|
