2.4G5.8G WIFI 157mm omnidirectional router external folding glue stick antenna

1. Specification

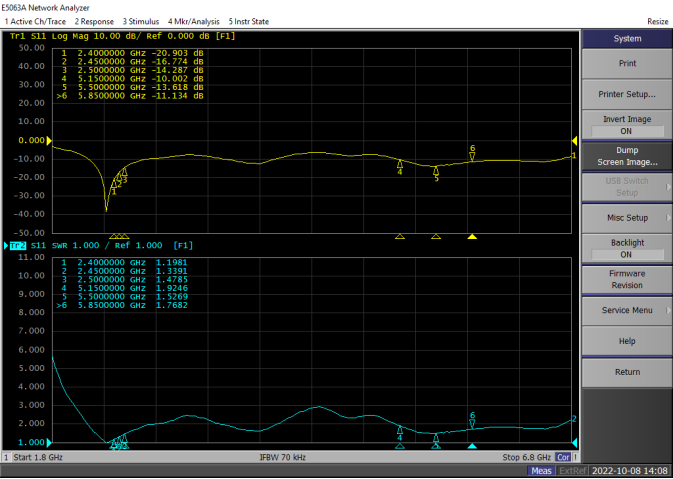

2. Antenna - S Parameter Test Data
2.1 VSWR

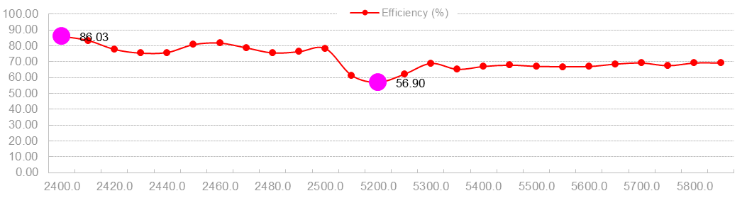

2.2 Total Efficiency & Gain:

Frequency (MHz)	2400.0	2410.0	2420.0	2430.0	2440.0	2450.0	2460.0	2470.0	2480.0	2490.0	2500.0
Gain (dBi)	2.71	2.48	2.13	2.00	2.10	2.42	2.48	2.39	2.28	2.35	2.49
Efficiency (%)	86.03	83.37	77.70	75.36	75.74	80.76	81.70	78.67	75.47	76.24	78.28

Frequency (MHz)	5150	5200	5250	5300	5350	5400	5450	5500	5550	5600	5650	5700	5750	5800	5850
Gain (dBi)	3.03	2.86	3.15	3.45	3.43	3.73	4.03	4.11	4.05	3.86	3.86	3.84	3.67	3.93	3.86
Efficiency (%)	61.18	56.90	62.00	68.83	65.08	66.87	67.73	66.93	66.77	66.85	68.37	69.07	67.35	69.06	69.06

	3D	2D-Horizontal	2D-Vertical
2400MHz
2450MHz
2500MHz
5150MHz
5500MHz
5850MHz
