| Brand Name : | Leenz |
| Model Number : | LZANT-10617-A |
| Certification : | RoHs |
| Payment Terms : | T/T |
| Supply Ability : | 5K per day |
| Delivery Time : | 15 days |
Satellite Positioning Antenna Multi-Band Gnss Antenna 35dbi Gps Glonass Beidou Galileo
1. Specification
| A. Electrical Characteristics | |||
| Frequency | 1164-1286MHz, 1525-1615MHz | ||
| Supported Positioning signal bands | GPS: L1/L2/L5 BDS: B1/B2/B3 GLONASS: G1/G2/G3 Galileo: E1/E5a/E5b L-Band | ||
| Peak Gain | ≥4dBi@FC,with 100mm ground plane | ||
| Impedance | 50Ohm | ||
| Polarization | RHCP | ||
| Axial Ratio | ≤1.5 dB | ||
| Azimuth Coverage | 360° | ||
| B. LNA and Filter Electrical Properties | |||
| LNA Gain | 35±2dBi(Typ.@25℃) | ||
| P-1out | ≥5dBm | ||
| Noise Figure | ≤2.0dB@25℃,Typ.(Pre-filtered) | ||
| Output VSWR | ≤1.5 : 1Typ. 2.0 : 1 Max | ||
| Operation Voltage | 3-6 V DC | ||
| Operation Current | ≤45mA | ||
| ESD circuit protection | 15KV air discharge | ||
| Out-of-Band Rejection | L5/E5/L2/G2/B2 | ＜1050MHz: ＞55dB ＜1125MHz: ＞30dB ＜1350MHz: ＞45dB | |
| L1/E1/B1/G1 | ＜1450MHz: ＞40dB ＜1690MHz: ＞40dB ＜1730MHz: ＞45dB | ||
| C. Material & Mechanical Characteristics | |||
| Connector Type | TNC connector | ||
| Dimension | 119x76x27mm | ||
| Radome material | PC+ABS | ||
| Base | Aluminum alloy 6061-T6 | ||
| Attachment Method | Four screw holes | ||
| Waterproof | IP67 | ||
| Weight | 0.2Kg | ||
| C. Environmental | |||
| Operation Temperature | - 40 ˚C ~ + 85 ˚C | ||
| Storage Temperature | - 40 ˚C ~ + 85 ˚C | ||
| Humidity | ≤95% | ||
| Vibration | 3 axis sweep = 15 min, 10 to 200Hz sweep: 3G | ||
| Shock | Vertical axis:50G, other axes:30G | ||
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency (MHz) | 1160 | 1165 | 1170 | 1175 | 1180 | 1185 | 1190 | 1195 | 1200 | 1205 | 1210 | 1215 | 1220 | 1225 | 1230 | 1235 | 1240 | 1245 | 1250 | 1255 | 1260 | 1265 | 1270 | 1275 | 1280 | 1285 | 1290 |
| Gain (dBi) | 29.96 | 32.24 | 33.83 | 34.93 | 35.83 | 36.61 | 37.45 | 37.91 | 38.26 | 38.62 | 39.17 | 39.71 | 40.1 | 40.16 | 40.01 | 39.46 | 38.86 | 37.95 | 37.1 | 36.09 | 35.15 | 34.02 | 33.12 | 32.16 | 31.06 | 29.81 | 28.17 |
| Frequency (MHz) | 1525 | 1530 | 1535 | 1540 | 1545 | 1550 | 1555 | 1560 | 1565 | 1570 | 1575 | 1580 | 1585 | 1590 | 1595 | 1600 | 1605 | 1610 | 1615 | ||||||||
| Gain (dBi) | 33.85 | 34.59 | 35.53 | 36.57 | 37.12 | 37.41 | 37.99 | 38.45 | 38.48 | 38.1 | 37.95 | 37.8 | 37.48 | 36.98 | 36.66 | 36.34 | 35.86 | 35.27 | 34.79 |

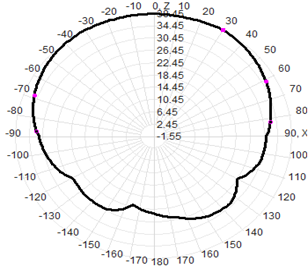

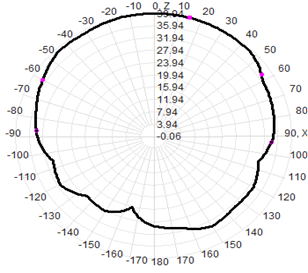

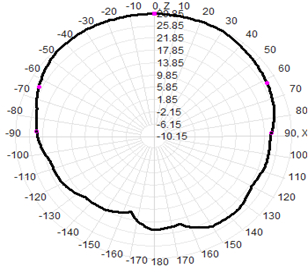

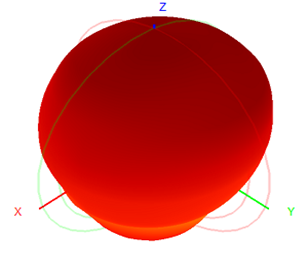

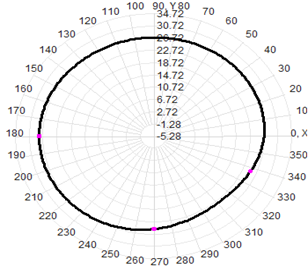

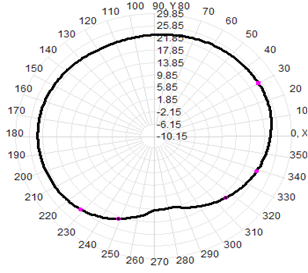

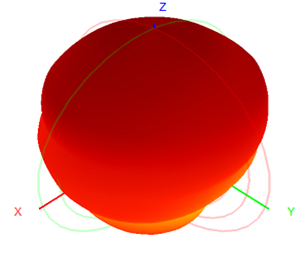

| 3D | 2D-Horizontal | 2D-Vertical | |
| 1160MHz |  |  |  |
| 1220MHz |  |  |  |
| 1290MHz |  |  |  |

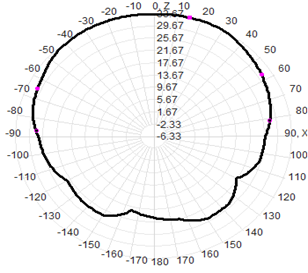

| 3D | 2D-Horizontal | 2D-Vertical | |
| 1525MHz |  |  |  |
| 1565MHz |  |  |  |
| 1615MHz |  |  |  |
|
|
