Professional R & D Antenna Production And Solution Provider
2 Years
| Ask Lasest Price | |
| Brand Name : | Leenz |
| Model Number : | LZANT-13172-B |
| Certification : | RoHs |
| Payment Terms : | T/T |
| Supply Ability : | 5K per day |
| Delivery Time : | 15 days |
Indoor Antenna External Antenna 4G LTE Omni Antenna Dipole Antenna Wide Band 824 - 2700Mhz
1. Specification
| A. Electrical Characteristics | |
| Frequency | 824~960 MHz; 1710-2700MHz |
| S.W.R. | <= 3.0 |
| Antenna Gain | 5 dBi |
| Polarization | Linear |
| Impedance | 50 Ohm |
| B. Material & Mechanical Characteristics | |
| Material of Radiator | PCB+Spring |
| Material of Plastic | Body: ABS |
| Cable Type | RG 178 |
| Connector Type | SMA Male |
| Connector Pull Test | >=3.0Kg |
| Connector Torque Test | NONE |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 65 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |

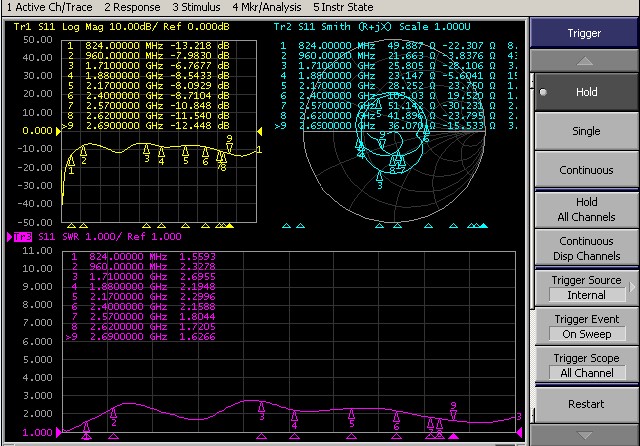

2. Antenna - S Parameter Test Data
2.1 VSWR
|
|
