| Brand Name : | Leenz |
| Model Number : | LZANT-10488-A |
| Certification : | RoHs |
| Payment Terms : | T/T |
| Supply Ability : | 5K per day |
| Delivery Time : | 15 days |
Indoor Antenna External Antenna 4G LTE Antenna 3-5dBi SMA Connector
UV Resistant 13x206
1. Specification
| A. Electrical Characteristics | ||
| Frequency | 700-960MHz | 1710-2700MHz |
| S.W.R. | <= 3.5 | <= 2.5 |
| Antenna Gain | 3dBi | 5dBi |
| Efficiency | ≈50% | ≈60% |
| Polarization | Linear | Linear |
| Impedance | 50 Ohm | 50 Ohm |
| B. Material & Mechanical Characteristics | ||
| Connector Type | SMA Connector | |
| Dimension | ¢13*206mm | |
| Color | Light Black | |
| Weight | 0.05Kg | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 80 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |
2. Antenna - S Parameter Test Data
2.1 VSWR

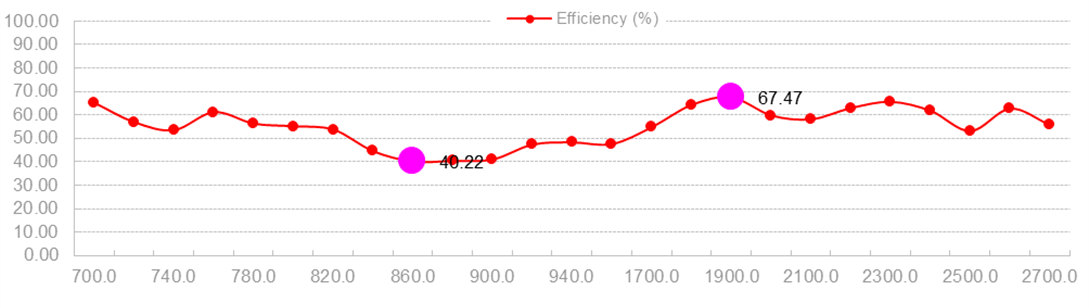

2.2 Total Efficiency & Gain
| Frequency (MHz) | 700.0 | 720.0 | 740.0 | 760.0 | 780.0 | 800.0 | 820.0 | 840.0 | 860.0 | 880.0 | 900.0 | 920.0 | 940.0 | 960.0 |
| Gain (dBi) | 2.45 | 2.03 | 2.27 | 3.18 | 3.11 | 2.96 | 3.04 | 2.70 | 2.27 | 2.05 | 1.91 | 2.06 | 2.11 | 2.07 |
| Efficiency (%) | 65.20 | 56.96 | 53.57 | 61.22 | 56.34 | 55.20 | 53.79 | 44.58 | 40.22 | 40.42 | 41.03 | 47.38 | 48.33 | 47.63 |
| Frequency (MHz) | 1700.0 | 1800.0 | 1900.0 | 2000.0 | 2100.0 | 2200.0 | 2300.0 | 2400.0 | 2500.0 | 2600.0 | 2700.0 | 1700.0 |
| Gain (dBi) | 3.47 | 4.40 | 4.47 | 4.15 | 4.50 | 5.01 | 4.88 | 4.24 | 2.26 | 2.72 | 3.04 | 3.47 |
| Efficiency (%) | 54.82 | 64.32 | 67.47 | 59.83 | 58.16 | 62.95 | 65.60 | 61.80 | 53.15 | 62.70 | 55.71 | 54.82 |

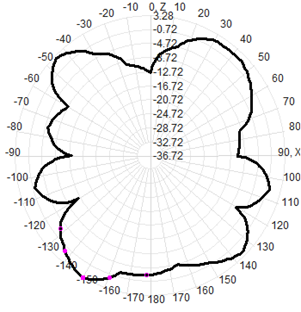

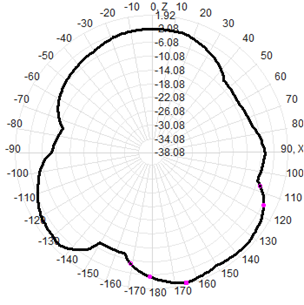

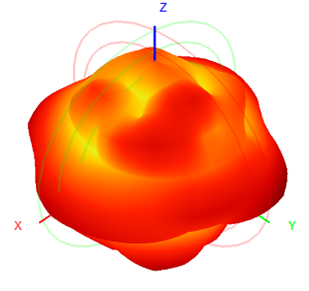

2.2 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 700MHz |  |  |  |
| 840MHz |  |  |  |
| 960MHz |  |  |  |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1700MHz |  |  |  |
| 2200MHz |  |  |  |
| 2700MHz |  |  |  |
|
|
