Indoor Antenna External Antenna Rubber Duck Antenna 915MHz Antenna 1.5dBi 20x800mm
1. Specification
| A. Electrical Characteristics | |
| Frequency | 915MHz |
| Impedance | 50 Ohm |
| S.W.R. | <1.5 |
| Gain | 3dBi |
| Efficiency | ≈50% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 28-29° |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | SMA connector |
| Dimension | 40mm |
| Weight | 0.006Kg |
| Color | Black |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
2. Antenna - S Parameter Test Data

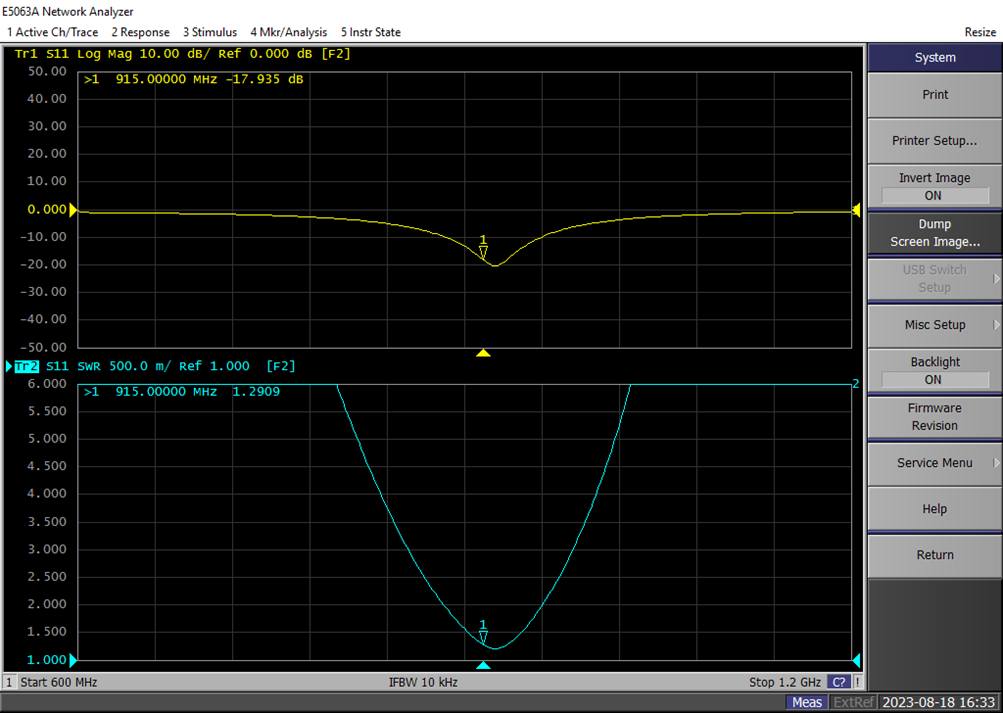

2.1 VSWR

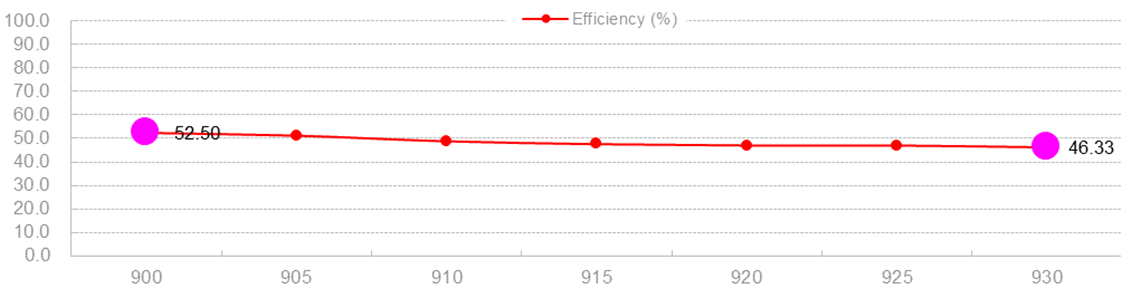

2.2 Total Efficiency & Gain
| Frequency (MHz) | 900 | 905 | 910 | 915 | 920 | 925 | 930 |
| Gain (dBi) | 3.6 | 3.5 | 3.3 | 3.2 | 3.1 | 3.0 | 2.8 |
| Efficiency (%) | 52.5 | 51.3 | 48.9 | 47.7 | 47.1 | 47.1 | 46.3 |
2.3 Radiation Pattern

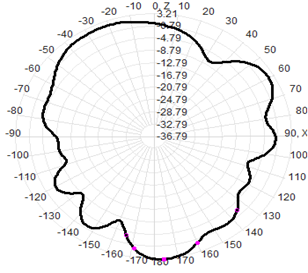

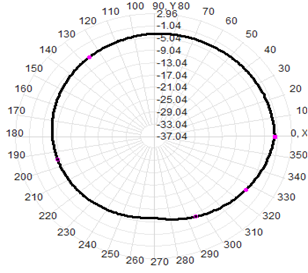

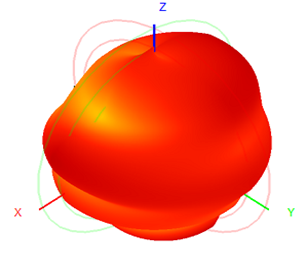

| 3D | 2D-Horizontal | 2D-Vertical | |
| 900MHz |  |  |  |
| 915MHz |  |  |  |
| 930MHz |  |  |  |
|
|
