Indoor Antenna External Antenna Gooseneck 220-1700MHz TNC connector 20x450mm
1. Specification
| A. Electrical Characteristics | |
| Frequency | 220-1700MHz |
| Impedance | 50 Ohm |
| S.W.R. | <2.0 |
| Gain | 0dBi |
| Efficiency | ≈79% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 14-100° |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | TNC connector |
| Dimension | Φ20*450mm |
| Weight | 0.173Kg |
| Radome Materials | Fiberglass |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
2. Antenna - S Parameter Test Data

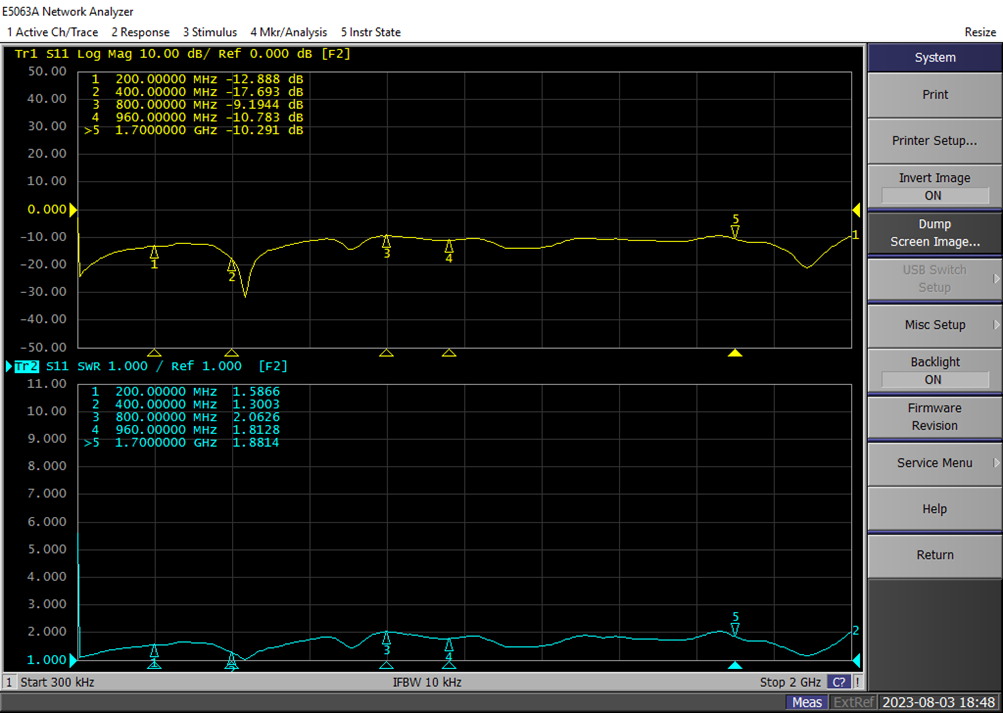

2.1 VSWR
2.2 Total Efficiency & Gain
| Frequency (MHz) | Gain (dBi) | Efficiency (%) |
| 220 | -6.3 | 13.8 |
| 240 | -4.5 | 19.5 |
| 260 | -5.4 | 15.6 |
| 280 | -5.4 | 14.1 |
| 300 | -5.3 | 13.8 |
| 320 | -2.9 | 19.2 |
| 340 | -2.5 | 21.6 |
| 360 | -3.0 | 16.1 |
| 380 | -3.1 | 17.6 |
| 400 | -1.6 | 23.2 |
| 450 | -1.8 | 22.3 |
| 500 | -3.1 | 14.9 |
| 550 | -2.4 | 12.6 |
| 600 | -0.6 | 16.9 |
| 650 | -1.2 | 19.3 |
| 700 | -1.9 | 26.2 |
| 750 | -3.1 | 26.5 |
| 800 | -2.7 | 28.2 |
| 850 | -4.2 | 20.7 |
| 900 | -3.7 | 21.5 |
| 950 | -3.2 | 21.8 |
| 1000 | -2.9 | 21.2 |
| 1050 | -3.6 | 17.5 |
| 1100 | -0.9 | 27.8 |
| 1150 | -1.3 | 26.6 |
| 1200 | -1.9 | 24.1 |
| 1250 | -1.3 | 23.0 |
| 1300 | -0.8 | 23.0 |
| 1350 | -0.3 | 25.7 |
| 1400 | 1.0 | 32.6 |
| 1450 | 0.4 | 29.4 |
| 1500 | -0.6 | 24.1 |
| 1550 | -0.9 | 22.2 |
| 1600 | -0.5 | 22.6 |
| 1650 | -0.7 | 23.0 |
| 1700 | -1.2 | 25.8 |

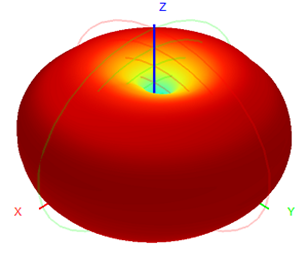

2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 220MHz |  |  |  |
| 950MHz |  |  |  |
| 1700MHz |  |  |  |
|
|
