Outdoor Waterproof Omnidirectional Antenna Fiberglass Antenna FRP Antenna 2.4Ghz WIFI 6dBi 350mm
1. Specification
| A. Electrical Characteristics | |
| Frequency | 2400-2500MHz |
| Impedance | 50 Ohm |
| S.W.R. | <1.5 |
| Antenna Gain | 6dBi |
| Efficiency | ≈83% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 22°±2° |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N connector |
| Dimension | Φ20*350mm |
| Weight | 0.123Kg |
| Radome material | Fiberglass |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
| Rated Wind Velocity | 36.9m/s |
| Lighting Protection | DC Ground |
2. Antenna - S Parameter Test Data
2.1 VSWR

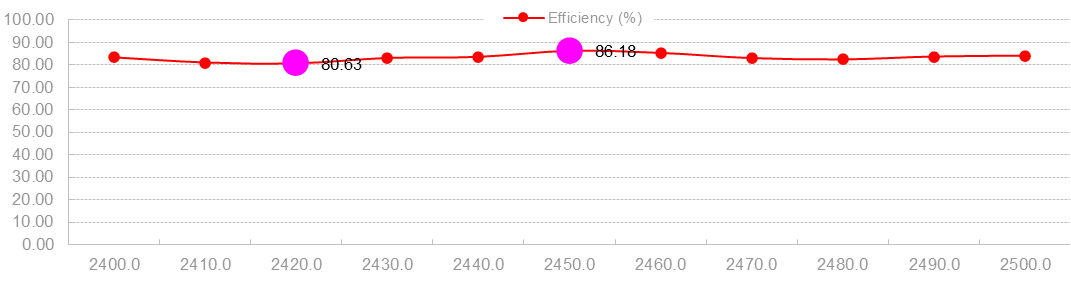

2.2 Total Efficiency & Gain:
| Frequency(MHz) | 2400.0 | 2410.0 | 2420.0 | 2430.0 | 2440.0 | 2450.0 | 2460.0 | 2470.0 | 2480.0 | 2490.0 | 2500.0 |
| Gain (dBi) | 5.72 | 5.65 | 5.64 | 5.76 | 5.72 | 5.82 | 5.81 | 5.73 | 5.64 | 5.69 | 5.74 |
| Efficiency (%) | 83.28 | 81.03 | 80.63 | 83.03 | 83.49 | 86.18 | 85.25 | 82.97 | 82.38 | 83.67 | 84.07 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 2400MHz |  |  |  |
| 2450MHz |  |  |  |
| 2500MHz |  |  |  |
|
|
