Outdoor Waterproof Omnidirectional Antenna Fiberglass Antenna WIFI Dual Band 5dBi 2.4 & 5.8GHz 20x350mm
1. Specification
| A. Electrical Characteristics | ||
| Frequency | 2400-2500MHz | 5150-5850MHz |
| Impedance | 50 Ohm | 50 Ohm |
| S.W.R. | <1.6 | <1.6 |
| Gain | 4.5dBi | 5dBi |
| Efficiency | ≈78% | ≈75% |
| Horizontal Beamwidth | 360° | 360° |
| Vertical Beamwidth | 35°±5° | 20°±5° |
| Polarization | Linear | Linear |
| Max Power | 50W | 50W |
| B. Material & Mechanical Characteristics | ||
| Connector Type | N connector | |
| Dimension | Φ20*350mm | |
| Weight | 0.122Kg | |
| Radome material | Fiberglass | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 80 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:

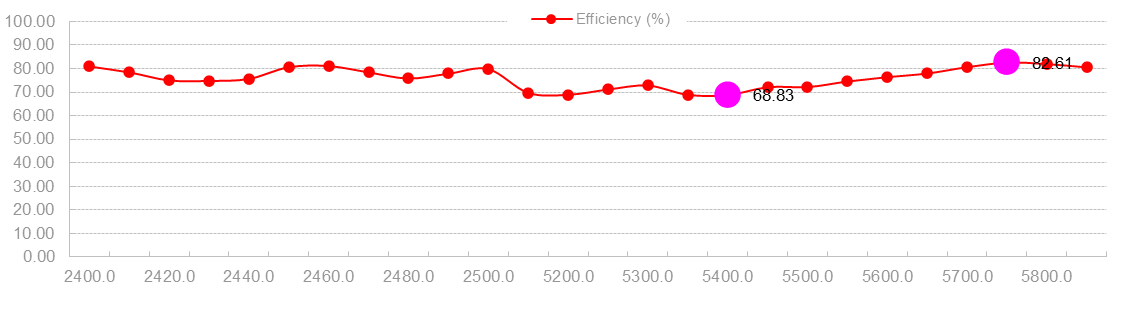

| Frequency(MHz) | 2400.0 | 2410.0 | 2420.0 | 2430.0 | 2440.0 | 2450.0 | 2460.0 | 2470.0 | 2480.0 | 2490.0 | 2500.0 |
| Gain (dBi) | 4.54 | 4.38 | 4.11 | 4.02 | 3.93 | 4.17 | 4.19 | 4.07 | 3.82 | 3.84 | 3.98 |
| Efficiency (%) | 80.99 | 78.47 | 75.08 | 74.82 | 75.66 | 80.63 | 81.14 | 78.48 | 75.85 | 77.90 | 79.82 |
| Frequency(MHz) | 5150 | 5200 | 5250 | 5300 | 5350 | 5400 | 5450 | 5500 | 5550 | 5600 | 5650 | 5700 | 5750 | 5800 | 5850 |
| Gain (dBi) | 4.44 | 4.33 | 4.17 | 4.18 | 4.20 | 4.39 | 4.75 | 4.51 | 4.10 | 3.82 | 3.68 | 4.06 | 4.24 | 4.67 | 5.30 |
| Efficiency (%) | 69.76 | 68.94 | 71.19 | 72.88 | 68.93 | 68.83 | 72.16 | 72.23 | 74.59 | 76.46 | 77.99 | 80.71 | 82.61 | 81.99 | 80.57 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 2400MHz |  |  |  |
| 2450MHz |  |  |  |
| 2500MHz |  |  |  |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 5150MHz |  |  |  |
| 5500MHz |  |  |  |
| 5850MHz |  |  |  |
|
|
