Outdoor Waterproof Omnidirectional Antenna Fiberglass Antenna WIFI Dual Band 6-8dBi 2.4 & 5.8GHz 23x275mm
1. Specification
| A. Electrical Characteristics | ||
| Frequency | 2400-2500MHz | 5150-5850MHz |
| Impedance | 50 Ohm | 50 Ohm |
| S.W.R. | <2.0 | <2.0 |
| Gain | 6dBi | 8dBi |
| Efficiency | ≈75% | ≈72% |
| Horizontal Beamwidth | 360° | 360° |
| Vertical Beamwidth | 25-27° | 16-40° |
| Polarization | Linear | Linear |
| Max Power | 50W | 50W |
| B. Material & Mechanical Characteristics | ||
| Connector Type | N connector | |
| Dimension | Φ23*275mm | |
| Weight | 0.097Kg | |
| Radome material | Fiberglass | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 80 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |
2. Antenna - S Parameter Test Data
2.1 VSWR

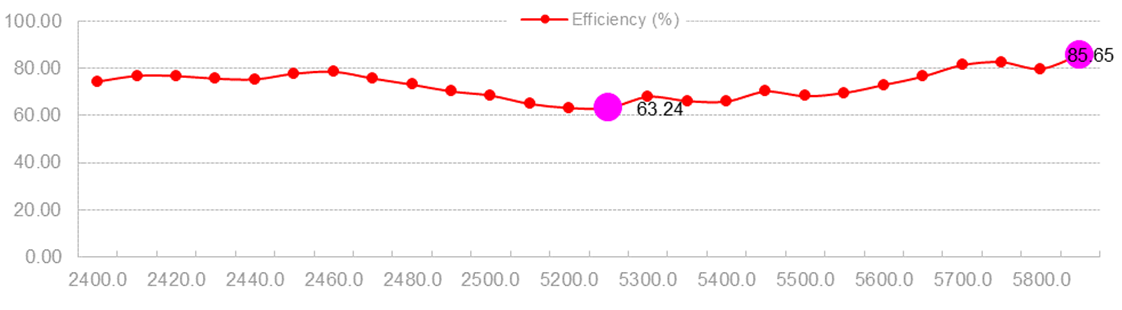

2.2 Total Efficiency & Gain:
| Frequency(MHz) | 2400.0 | 2410.0 | 2420.0 | 2430.0 | 2440.0 | 2450.0 | 2460.0 | 2470.0 | 2480.0 | 2490.0 | 2500.0 |
| Gain (dBi) | 5.92 | 6.06 | 6.06 | 6.03 | 6.14 | 6.29 | 6.30 | 6.14 | 6.02 | 5.83 | 5.60 |
| Efficiency (%) | 74.46 | 76.85 | 76.74 | 75.64 | 75.38 | 77.77 | 78.56 | 75.69 | 73.08 | 70.27 | 68.49 |
| Frequency(MHz) | 5150 | 5200 | 5250 | 5300 | 5350 | 5400 | 5450 | 5500 | 5550 | 5600 | 5650 | 5700 | 5750 | 5800 | 5850 |
| Gain (dBi) | 3.25 | 3.33 | 3.65 | 4.12 | 4.57 | 5.01 | 5.65 | 5.65 | 5.69 | 6.61 | 7.63 | 7.94 | 8.01 | 7.72 | 7.91 |
| Efficiency (%) | 64.98 | 63.28 | 63.24 | 68.00 | 66.20 | 66.00 | 70.20 | 68.25 | 69.60 | 72.96 | 76.50 | 81.36 | 82.60 | 79.81 | 85.65 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 2400MHz |  |  |  |
| 2450MHz |  |  |  |
| 2500MHz |  |  |  |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 5150MHz |  |  |  |
| 5500MHz |  |  |  |
| 5850MHz |  |  |  |
|
|
