1. Specification
| A. Electrical Characteristics | |||
| Frequency | 600-960MHz | 960-7800MHz | 7800-8000MHz |
| S.W.R. | <2.5 | <3.0 | <6.0 |
| Antenna Gain | 3dBi | 6dBi | 5dBi |
| Polarization | Linear | Linear | Linear |
| Horizontal Beamwidth | 360° | 60-230° | 60° |
| Vertical Beamwidth | 50-100° | 20-120° | 20-70° |
| Impedance | 50 Ohm | 50 Ohm | 50 Ohm |
| Max Power | 50W | 50W | 50W |
| B. Material & Mechanical Characteristics | |||
| Connector Type | N connector | ||
| Dimension | Φ110*320mm | ||
| Weight | 1.075Kg | ||
| Radome material | Fiberglass | ||
| C. Environmental | |||
| Operation Temperature | - 40 ˚C ~ + 80 ˚C | ||
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | ||
| Rated Wind Velocity | 36.9m/s | ||
| Lighting Protection | DC Ground | ||
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) | Efficiency (%) | Frequency(MHz) | Gain(dBi) | Efficiency (%) | |
| 600.0 | 0.27 | 61.27 | 4600.0 | 2.32 | 76.62 | |
| 700.0 | 2.96 | 87.75 | 4700.0 | 2.81 | 78.79 | |
| 800.0 | 1.62 | 80.81 | 4800.0 | 3.33 | 80.42 | |
| 900.0 | 2.13 | 78.43 | 4900.0 | 3.25 | 82.32 | |
| 1000.0 | 1.80 | 80.82 | 5000.0 | 2.84 | 73.57 | |
| 1100.0 | 2.63 | 89.26 | 5100.0 | 2.96 | 73.22 | |
| 1200.0 | 2.92 | 83.20 | 5200.0 | 3.49 | 76.38 | |
| 1300.0 | 2.07 | 74.78 | 5300.0 | 3.90 | 75.87 | |
| 1400.0 | 2.94 | 83.75 | 5400.0 | 4.01 | 75.76 | |
| 1500.0 | 3.30 | 81.59 | 5500.0 | 4.26 | 70.52 | |
| 1600.0 | 3.56 | 92.05 | 5600.0 | 4.75 | 71.00 | |
| 1700.0 | 3.12 | 83.74 | 5700.0 | 5.73 | 80.14 | |
| 1800.0 | 2.45 | 77.38 | 5800.0 | 5.93 | 77.99 | |
| 1900.0 | 2.21 | 73.92 | 5900.0 | 5.91 | 76.29 | |
| 2000.0 | 1.92 | 79.86 | 6000.0 | 5.60 | 69.70 | |
| 2100.0 | 1.40 | 80.07 | 6100.0 | 5.36 | 68.28 | |
| 2200.0 | 1.81 | 78.00 | 6200.0 | 5.36 | 72.87 | |
| 2300.0 | 1.96 | 80.65 | 6300.0 | 5.43 | 78.21 | |
| 2400.0 | 2.85 | 84.33 | 6400.0 | 5.21 | 77.65 | |
| 2500.0 | 3.80 | 82.33 | 6500.0 | 4.43 | 73.09 | |
| 2600.0 | 2.52 | 79.80 | 6600.0 | 4.41 | 73.61 | |
| 2700.0 | 2.80 | 83.54 | 6700.0 | 4.18 | 76.04 | |
| 2800.0 | 3.18 | 80.53 | 6800.0 | 4.29 | 77.68 | |
| 2900.0 | 4.14 | 86.38 | 6900.0 | 4.75 | 83.76 | |
| 3000.0 | 3.50 | 73.01 | 7000.0 | 4.94 | 80.22 | |
| 3100.0 | 2.26 | 69.32 | 7100.0 | 5.30 | 79.30 | |
| 3200.0 | 2.12 | 68.92 | 7200.0 | 5.13 | 78.00 | |
| 3300.0 | 2.56 | 75.14 | 7300.0 | 4.71 | 79.00 | |
| 3400.0 | 2.88 | 75.35 | 7400.0 | 5.07 | 85.74 | |
| 3500.0 | 3.24 | 82.55 | 7500.0 | 5.23 | 82.78 | |
| 3600.0 | 3.51 | 85.16 | 7600.0 | 5.00 | 79.16 | |
| 3700.0 | 3.85 | 81.19 | 7700.0 | 4.79 | 80.30 | |
| 3800.0 | 3.45 | 82.05 | 7800.0 | 4.81 | 79.92 | |
| 3900.0 | 3.36 | 88.25 | 7900.0 | 5.02 | 77.99 | |
| 4000.0 | 3.35 | 87.86 | 8000.0 | 4.70 | 68.08 | |
| 4100.0 | 3.26 | 85.14 | 8100.0 | 4.63 | 68.50 | |
| 4200.0 | 2.70 | 81.37 | 8200.0 | 4.77 | 70.14 | |
| 4300.0 | 2.80 | 81.05 | 8300.0 | 5.19 | 72.39 | |
| 4400.0 | 2.81 | 83.07 | 8400.0 | 5.37 | 76.90 | |
| 4500.0 | 2.76 | 83.30 | 8500.0 | 5.02 | 73.20 |

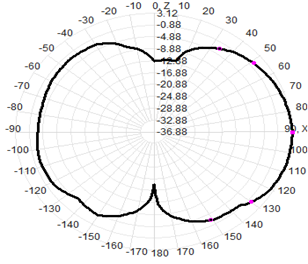

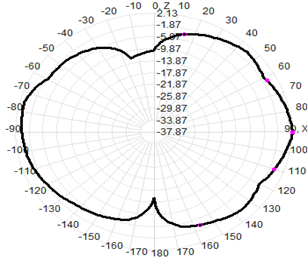

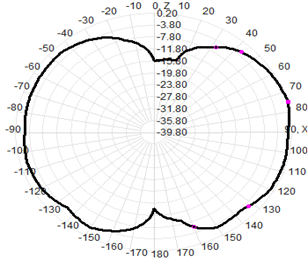

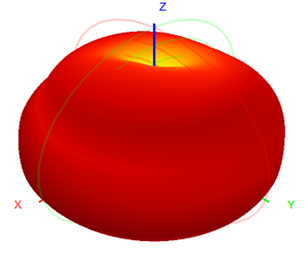

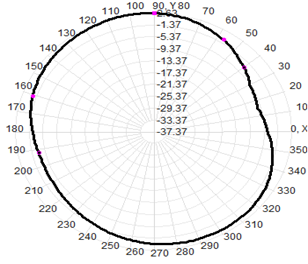

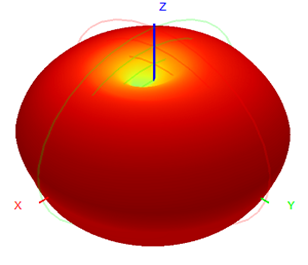

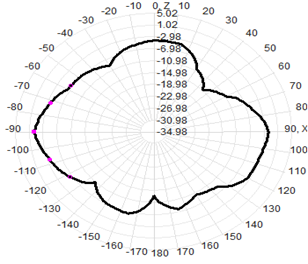

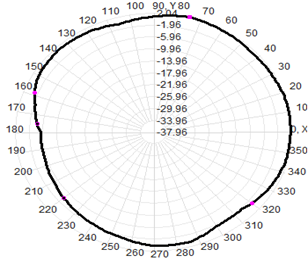

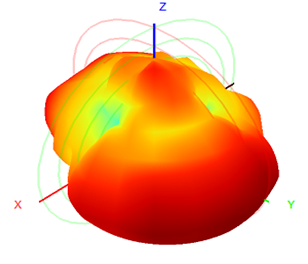

| 3D | 2D-Horizontal | 2D-Vertical | |
| 600MHz |  |  |  |
| 900MHz |  |  |  |
| 1700MHz |  |  |  |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 2700MHz |  |  |  |
| 5000MHz |  |  |  |
| 8000MHz |  |  |  |
|
|
