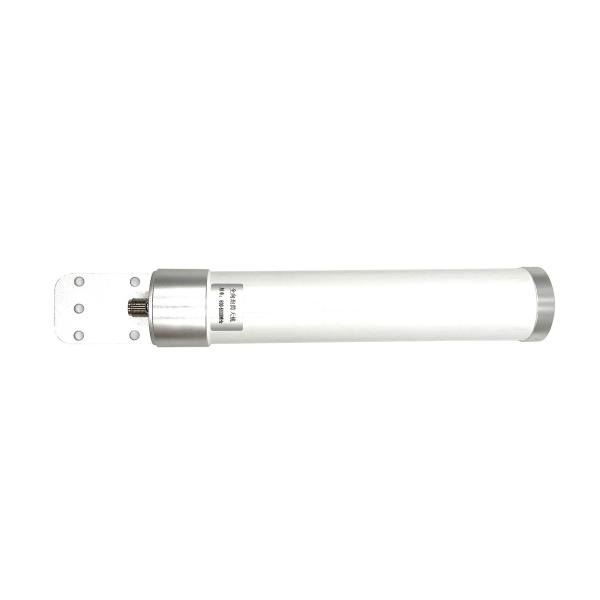

1. Specification
| A. Electrical Characteristics | |
| Frequency | 600-6000MHz |
| S.W.R. | <2.0 |
| Efficiency | ≈70% |
| Antenna Gain | 3-5dBi |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 26-80° |
| Impedance | 50 Ohm |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N connector |
| Dimension | Φ60*350mm |
| Weight | 0.54Kg |
| Radome material | Fiberglass |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
| Rated Wind Velocity | 36.9m/s |
| Lighting Protection | DC Ground |
2. Antenna - S Parameter Test Data

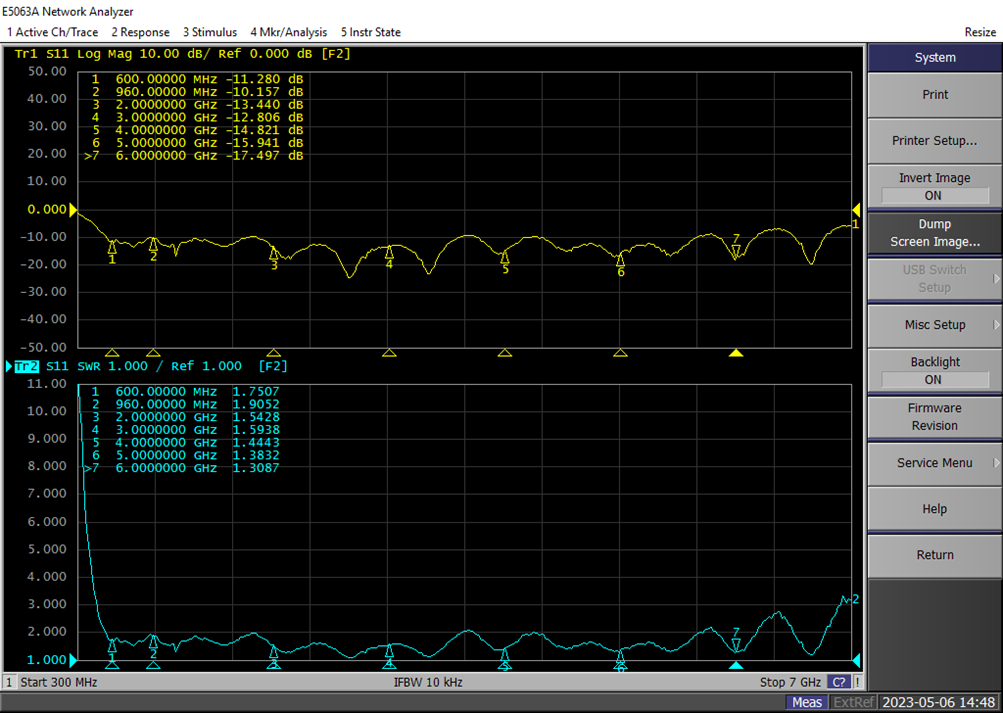

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency (MHz) | Gain (dBi) | Efficiency (%) | Frequency (MHz) | Gain (dBi) | Efficiency (%) | |
| 600.0 | 3.1 | 63.5 | 2900.0 | 3.2 | 74.7 | |
| 630.0 | 3.0 | 68.5 | 3000.0 | 3.3 | 74.2 | |
| 660.0 | 2.9 | 66.7 | 3100.0 | 3.1 | 68.8 | |
| 690.0 | 3.6 | 71.4 | 3200.0 | 3.1 | 70.2 | |
| 720.0 | 3.1 | 73.7 | 3300.0 | 3.1 | 69.6 | |
| 750.0 | 3.8 | 71.6 | 3400.0 | 3.1 | 73.6 | |
| 780.0 | 4.7 | 75.5 | 3500.0 | 3.2 | 72.7 | |
| 810.0 | 5.0 | 75.6 | 3600.0 | 3.4 | 72.3 | |
| 840.0 | 4.4 | 75.7 | 3700.0 | 3.4 | 67.6 | |
| 870.0 | 3.8 | 77.5 | 3800.0 | 3.2 | 60.7 | |
| 900.0 | 3.0 | 82.4 | 3900.0 | 3.1 | 67.1 | |
| 930.0 | 3.2 | 82.6 | 4000.0 | 3.3 | 70.9 | |
| 960.0 | 3.2 | 89.3 | 4100.0 | 3.1 | 68.8 | |
| 1000.0 | 3.7 | 82.8 | 4200.0 | 3.0 | 67.3 | |
| 1100.0 | 3.0 | 85.6 | 4300.0 | 3.0 | 64.9 | |
| 1200.0 | 4.2 | 77.1 | 4400.0 | 3.1 | 61.1 | |
| 1300.0 | 3.0 | 73.5 | 4500.0 | 3.2 | 62.1 | |
| 1400.0 | 3.3 | 77.8 | 4600.0 | 3.1 | 67.6 | |
| 1500.0 | 3.0 | 72.4 | 4700.0 | 3.0 | 65.3 | |
| 1600.0 | 3.1 | 79.2 | 4800.0 | 3.1 | 67.7 | |
| 1700.0 | 3.3 | 74.6 | 4900.0 | 3.2 | 55.6 | |
| 1800.0 | 3.0 | 70.7 | 5000.0 | 3.2 | 58.8 | |
| 1900.0 | 3.1 | 76.7 | 5100.0 | 3.2 | 60.7 | |
| 2000.0 | 3.4 | 76.6 | 5200.0 | 3.5 | 64.8 | |
| 2100.0 | 3.1 | 78.1 | 5300.0 | 4.2 | 69.8 | |
| 2200.0 | 3.2 | 80.2 | 5400.0 | 3.8 | 62.2 | |
| 2300.0 | 3.0 | 76.1 | 5500.0 | 4.2 | 62.3 | |
| 2400.0 | 3.1 | 75.8 | 5600.0 | 4.1 | 61.1 | |
| 2500.0 | 3.2 | 73.7 | 5700.0 | 4.6 | 64.0 | |
| 2600.0 | 3.3 | 70.6 | 5800.0 | 4.9 | 71.9 | |
| 2700.0 | 3.0 | 72.1 | 5900.0 | 5.1 | 71.8 | |
| 2800.0 | 3.1 | 74.2 | 6000.0 | 5.4 | 73.2 |

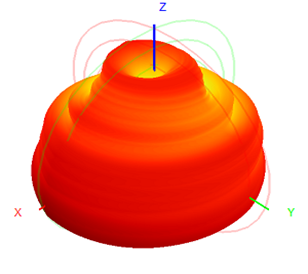

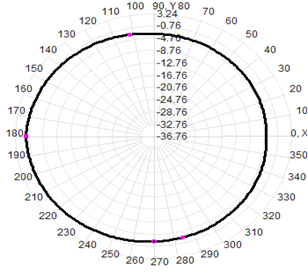

| 3D | 2D-Horizontal | 2D-Vertical | |
| 600MHz |  |  |  |
| 780MHz |  |  |  |
| 960MHz |  |  |  |

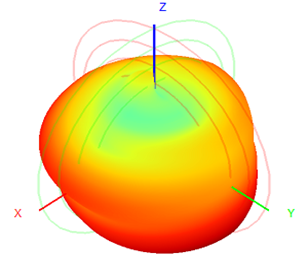

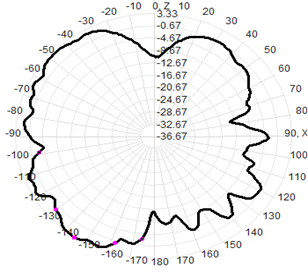

| 3D | 2D-Horizontal | 2D-Vertical | |
| 1600MHz |  |  |  |
| 2000MHz |  |  |  |
| 3000MHz |  |  |  |

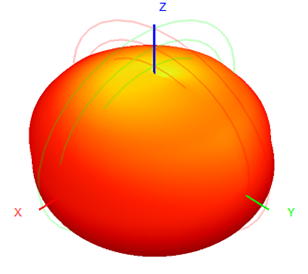

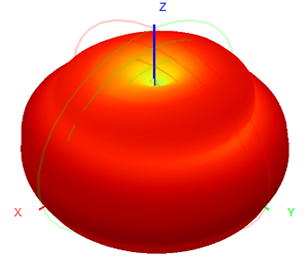

| 3D | 2D-Horizontal | 2D-Vertical | |
| 4000MHz |  |  |  |
| 5000MHz |  |  |  |
| 6000MHz |  |  |  |
|
|
