| Brand Name : | Leenz |
| Model Number : | LZANT-10176-A |
| Certification : | RoHs |
| Payment Terms : | T/T |
| Supply Ability : | 5K per day |
| Delivery Time : | 15 days |
1. Specification
| A. Electrical Characteristics | |
| Frequency | 3700-4200MHz |
| Impedance | 50 Ohm |
| S.W.R. | <1.6 |
| Antenna Gain | 3dBi |
| Efficiency | ≈84% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 50°@3950MHz |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | SMA connector |
| Dimension | Φ16*100mm |
| Weight | 0.031Kg |
| Radome material | Fiberglass |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
| Rated Wind Velocity | 36.9m/s |
| Lighting Protection | DC Ground |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | 3700.0 | 3750.0 | 3800.0 | 3850.0 | 3900.0 | 3950.0 | 4000.0 | 4050.0 | 4100.0 | 4150.0 | 4200.0 |
| Gain (dBi) | 2.84 | 2.86 | 3.14 | 3.26 | 3.22 | 3.26 | 3.14 | 3.24 | 2.83 | 2.75 | 2.56 |
| Efficiency (%) | 81.12 | 80.35 | 86.40 | 91.07 | 88.76 | 88.74 | 85.04 | 87.61 | 81.38 | 80.31 | 78.68 |

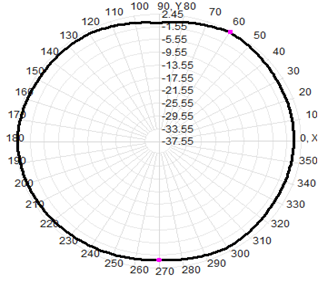

| 3D | 2D-Horizontal | 2D-Vertical | |
| 3700MHz |  |  |  |
| 3950MHz |  |  |  |
| 4200MHz |  |  |  |
|
|
