1100-1500M 1.2G1.4G1.5G omnidirectional UAV vehicle airborne spring shock-proof high-power fiberglass waterproof antenna
1. Specification
| A. Electrical Characteristics | |
| Frequency | 1100-1500MHz |
| Impedance | 50 Ohm |
| S.W.R. | <2.0 |
| Antenna Gain | 6dBi |
| Efficiency | ≈70% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 20°±5° |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N - Female |
| Dimension | Φ25*1200mm |
| Colour | Army green |
| Weight | 1.1Kg |
| Radome material | Fiberglass |
| C. Environmental | |
| Operation Temperature | - 45 ˚C ~ + 85 ˚C |
| Storage Temperature | - 45 ˚C ~ + 85 ˚C |
| Rated Wind Velocity | 36.9m/s |
| Lighting Protection | DC Ground |
2. Antenna - S Parameter Test Data

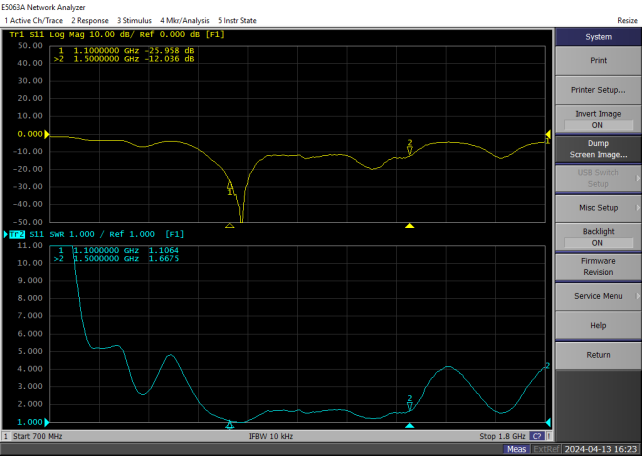

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | 1100 | 1150 | 1200 | 1250 | 1300 | 1350 | 1400 | 1450 | 1500 |
| Gain (dBi) | 3.3 | 4.3 | 3.6 | 3.6 | 5.1 | 5.1 | 5.7 | 5.7 | 5.6 |
| Efficiency (%) | 64.5 | 78.0 | 62.7 | 59.1 | 70.5 | 66.3 | 71.3 | 65.7 | 64.0 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1100MHz |  |  |  |
| 1300MHz |  |  |  |
| 1500MHz |  |  |  |
|
|
