Professional R & D Antenna Production And Solution Provider
2 Years
| Ask Lasest Price | |
| Brand Name : | Leenz |
| Model Number : | LZANT-10381-A |
| Certification : | RoHs |
| Payment Terms : | T/T |
| Supply Ability : | 5K per day |
| Delivery Time : | 15 days |
1. Specification
| A. Electrical Characteristics | |
| Frequency | 470-510MHz |
| Impedance | 50 Ohm |
| S.W.R. | <1.8 |
| Polarization | Linear |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | SMA connector |
| Cable Type | RG174 Cable |
| Dimension | Φ30*130mm |
| Weight | 0.04Kg |
| Antenna material | Carbon Steel |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |

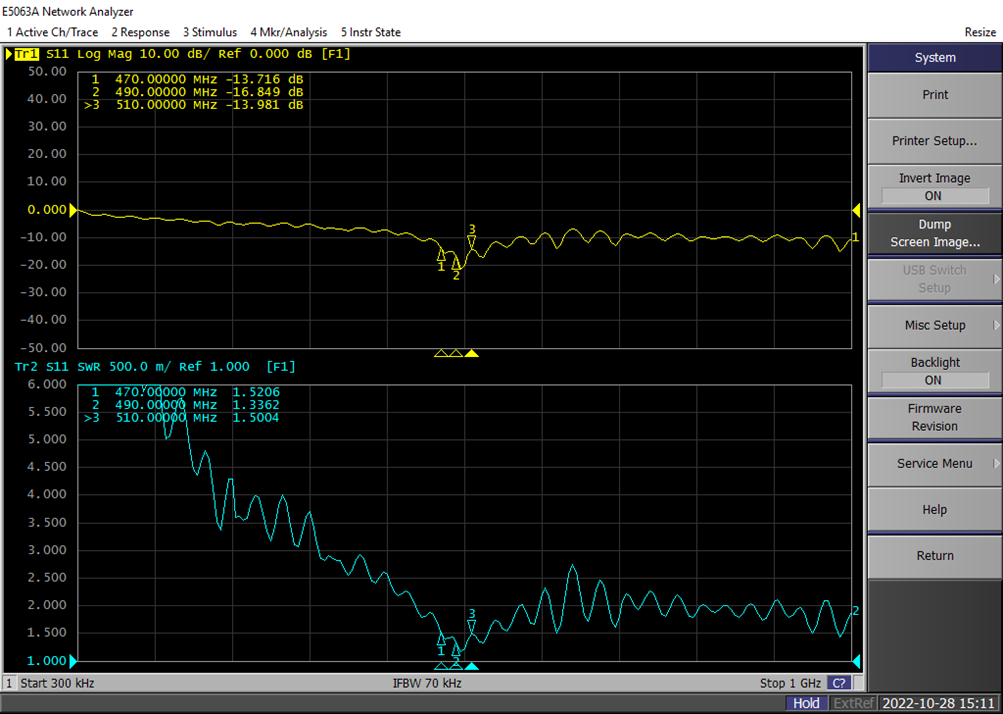

2. Antenna - S Parameter Test Data
2.1 VSWR
|
|
