| Brand Name : | Leenz |
| Model Number : | LZANT-10664-A |
| Certification : | RoHs |
| Payment Terms : | T/T |
| Supply Ability : | 5K per day |
| Delivery Time : | 15 days |
1. Specification
| A. Electrical Characteristics | |
| Frequency | 433MHz |
| Impedance | 50 Ohm |
| S.W.R. | <2.0 |
| Gain | 2dBi |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 55-60° |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | SMA connector |
| Cable Type | RG58 Cable |
| Dimension | Φ62*230mm |
| Weight | 0.38Kg |
| Antenna material | Copper Rod |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | 430.0 | 431.0 | 432.0 | 433.0 | 434.0 | 435.0 | 436.0 |
| Gain (dBi) | 1.82 | 1.79 | 1.74 | 1.68 | 1.69 | 1.67 | 1.58 |
| Efficiency (%) | 79.64 | 80.24 | 80.56 | 80.58 | 80.05 | 78.70 | 76.17 |

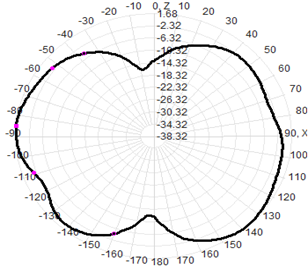

| 3D | 2D-Horizontal | 2D-Vertical | |
| 430MHz |  |  |  |
| 433MHz |  |  |  |
| 436MHz |  |  |  |
|
|
