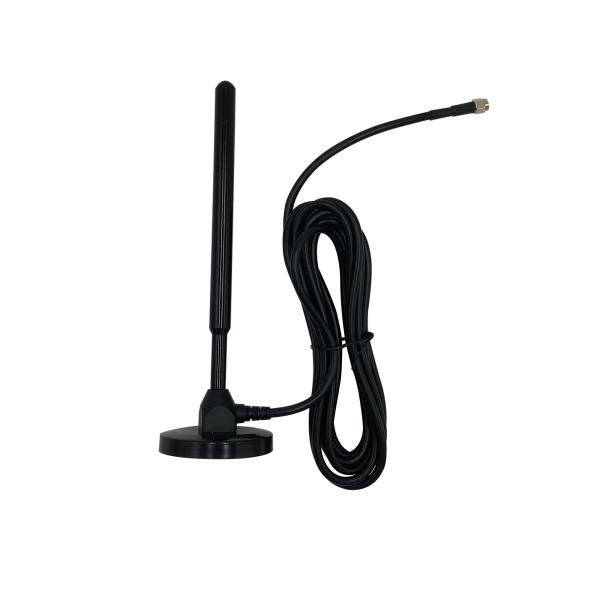

| Brand Name : | Leenz |
| Model Number : | LZANT-10482-A |
| Certification : | RoHs |
| Payment Terms : | T/T |
| Supply Ability : | 5K per day |
| Delivery Time : | 15 days |
1. Specification
| A. Electrical Characteristics | |
| Frequency | 470-510MHz |
| Impedance | 50 Ohm |
| S.W.R. | <2.5 |
| Gain | 0.5dBi |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | SMA connector |
| Cable Type | RG58 Cable |
| Dimension | Φ62*208mm |
| Weight | 0.355Kg |
| Antenna material | Copper Rod |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency (MHz) | 470 | 480 | 490 | 500 | 510 |
| Gain (dBi) | 0.61 | 0.52 | -0.16 | -1.52 | -0.26 |
| Efficiency (%) | 57.35 | 56.91 | 49.69 | 34.09 | 39.56 |

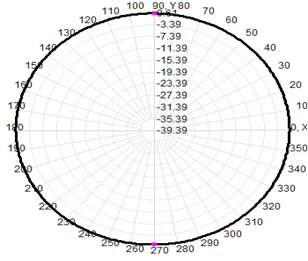

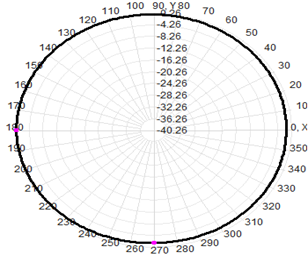

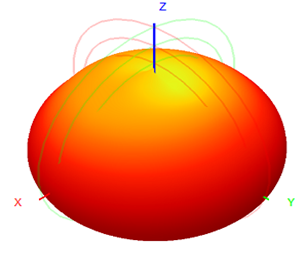

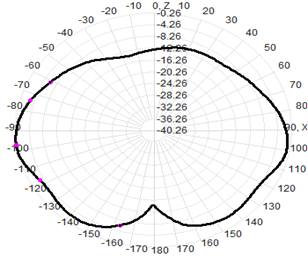

| 3D | 2D-Horizontal | 2D-Vertical | |
| 470MHz |  |  |  |
| 490MHz |  |  |  |
| 510MHz |  |  |  |
|
|
