2.4/5.8G wifi6 dual-band built-in ceramic PCB antenna IPEX
1. Specification
| A. Electrical Characteristics | ||
| Frequency | 2400-2500MHz | 5150-5850MHz |
| S.W.R. | <= 2.0 | <= 2.0 |
| Antenna Gain | 3dBi | 5dBi |
| Efficiency | ≈70% | ≈70% |
| Polarization | Linear | Linear |
| Horizontal Beamwidth | 360° | 360° |
| Vertical Beamwidth | 40±5° | 25±10° |
| Impedance | 50 Ohm | |
| Max Power | 50W | |
| B. Material & Mechanical Characteristics | ||
| Cable Type | RF1.37 Cable L=150mm | |
| Connector Type | IPEX-1 | |
| Dimension | 90*14mm | |
| Weight | 0.003Kg | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 65 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |

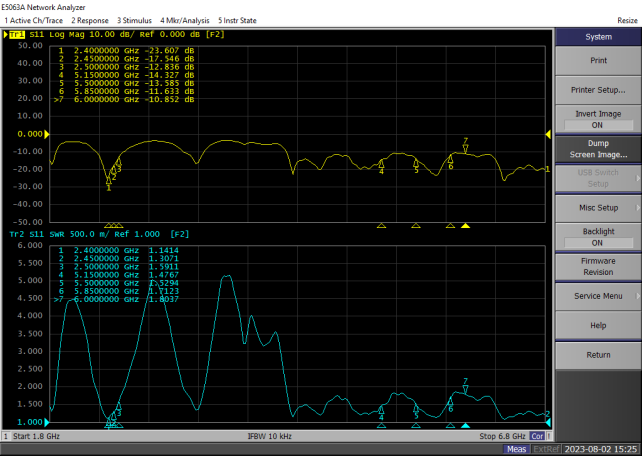

2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) | Efficiency (%) |
| 2400 | 3.2 | 62.1 |
| 2410 | 3.3 | 62.7 |
| 2420 | 3.2 | 61.7 |
| 2430 | 3.0 | 62.5 |
| 2440 | 2.6 | 62.0 |
| 2450 | 2.4 | 62.2 |
| 2460 | 2.4 | 64.2 |
| 2470 | 2.4 | 64.8 |
| 2480 | 2.1 | 61.8 |
| 2490 | 1.8 | 60.2 |
| 2500 | 1.8 | 60.8 |
| 5150 | 3.6 | 53.7 |
| 5200 | 3.4 | 52.1 |
| 5250 | 3.4 | 53.2 |
| 5300 | 3.9 | 56.9 |
| 5350 | 4.0 | 56.0 |
| 5400 | 3.7 | 52.3 |
| 5450 | 3.6 | 53.9 |
| 5500 | 3.7 | 55.0 |
| 5550 | 3.3 | 56.2 |
| 5600 | 3.0 | 56.9 |
| 5650 | 2.9 | 58.8 |
| 5700 | 2.7 | 58.8 |
| 5750 | 3.0 | 63.6 |
| 5800 | 3.0 | 61.2 |
| 5850 | 2.8 | 60.1 |
| 5900 | 2.8 | 62.0 |
| 5950 | 2.7 | 61.1 |
| 6000 | 3.5 | 67.9 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 2400MHz |  |  |  |
| 2450MHz |  |  |  |
| 2500MHz |  |  |  |
| 5.8G | 3D | 2D-Horizontal | 2D-Vertical |
| 5150MHz |  |  |  |
| 5500MHz |  |  |  |
| 5850MHz |  |  |  |
|
|
