6.2-6.8GHz Embedded Antenna FPC Antenna MHF1 plug

1. Specification

2. Antenna - S Parameter Test Data
2.1 VSWR


2.2 Total Efficiency & Gain:

Frequency (MHz)	6200.0	6250.0	6300.0	6350.0	6400.0	6450.0	6500.0	6550.0	6600.0	6650.0	6700.0	6750.0	6800.0
Gain (dBi)	2.57	2.60	2.30	2.15	2.10	2.07	1.83	2.07	2.10	1.97	1.76	1.75	1.50
Efficiency (%)	54.59	57.77	54.77	59.82	51.65	53.50	52.65	56.05	49.59	51.61	48.25	47.58	45.71

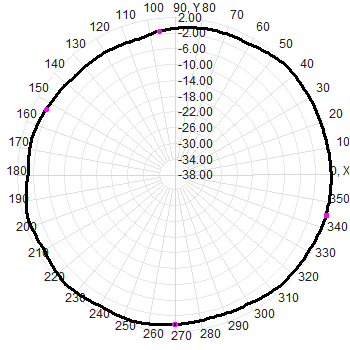

	3D	2D-Horizontal	2D-Vertical
6200MHz
6500MHz
6800MHz
