LTE built-in antenna 4G built-in PCB antenna gsm gprs 2G 3G LTE 4G
NB built-in antenna 3M adhesive ipex-1 antenna
1. Specification
| A. Electrical Characteristics | ||
| Frequency | 700-960MHz | 1710-2700MHz |
| S.W.R. | <= 2.0 | <= 2.5 |
| Antenna Gain | 1dBi | 2dBi |
| Efficiency | ≈47% | ≈47% |
| Polarization | Linear | Linear |
| Horizontal Beamwidth | 360° | 360° |
| Vertical Beamwidth | 35-95° | 40-95° |
| Impedance | 50 Ohm | |
| Max Power | 50W | |
| B. Material & Mechanical Characteristics | ||
| Cable Type | RF1.13 Cable | |
| Connector Type | MHF1 Plug | |
| Dimension | 106.5*14mm | |
| Weight | 0.003Kg | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 65 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency (MHz) | Gain (dBi) | Efficiency (%) |
| 690 | -0.6 | 30.5 |
| 720 | -0.1 | 37.6 |
| 750 | 0.5 | 43.1 |
| 780 | 0.7 | 47.9 |
| 810 | 0.5 | 49.5 |
| 840 | 0.4 | 46.9 |
| 870 | 0.3 | 45.8 |
| 900 | 1.1 | 53.6 |
| 930 | 0.7 | 53.2 |
| 960 | 1.9 | 62.9 |
| 1700 | 2.3 | 49.3 |
| 1800 | 1.5 | 45.3 |
| 1900 | 1.4 | 50.1 |
| 2000 | 1.7 | 54.3 |
| 2100 | 1.8 | 54.4 |
| 2200 | 1.7 | 46.2 |
| 2300 | 0.7 | 35.3 |
| 2400 | 0.7 | 41.5 |
| 2500 | 0.8 | 46.2 |
| 2600 | 0.6 | 45.6 |
| 2700 | -0.4 | 40.6 |

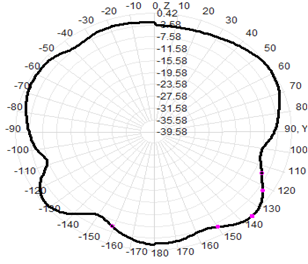

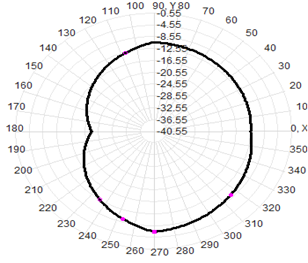

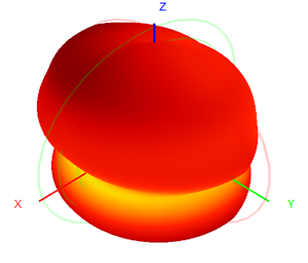

| 3D | 2D-Horizontal | 2D-Vertical | |
| 700MHz |  |  |  |
| 840MHz |  |  |  |
| 960MHz |  |  |  |

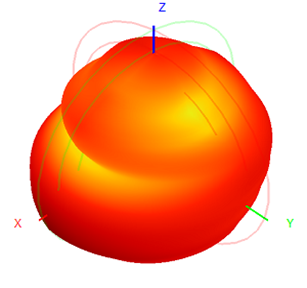

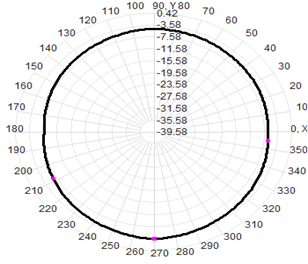

| 5.8G | 3D | 2D-Horizontal | 2D-Vertical |
| 1710MHz |  |  |  |
| 2200MHz |  |  |  |
| 2700MHz |  |  |  |
|
|
