2.4g2400-4500m Wifi 8dbi Omni 150w Drone Jammer Strike Pressed Frp Waterproof Antenna
1. Specification
| A. Electrical Characteristics | |
| Frequency | 2400-2500MHz(Customizable others) |
| Impedance | 50 Ohm |
| S.W.R. | <2.0 |
| Antenna Gain | 8dBi |
| Efficiency | ≈80% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 15±5° |
| Max Power | 150W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N - Female |
| Dimension | Φ25*600mm |
| Colour | Army black |
| Weight | 0.4Kg |
| Radome material | Fiberglass |
| C. Environmental | |
| Operation Temperature | - 45 ˚C ~ + 85 ˚C |
| Storage Temperature | - 45 ˚C ~ + 85 ˚C |
| Rated Wind Velocity | 36.9m/s |
| Lighting Protection | DC Ground |
2. Antenna - S Parameter Test Data

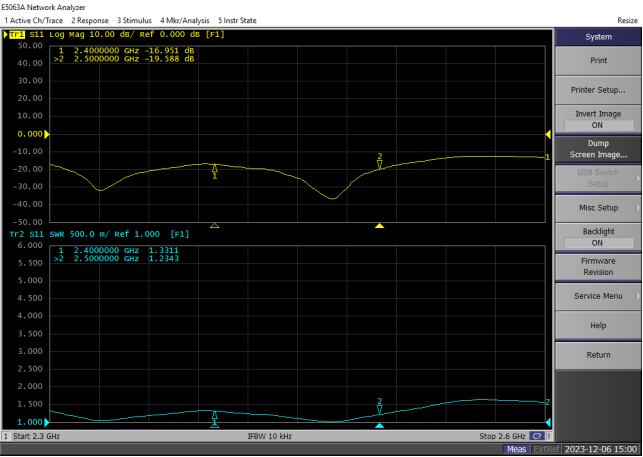

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) | Efficiency(%) |
| 2400 | 7.3 | 75.4 |
| 2410 | 7.0 | 71.6 |
| 2420 | 7.1 | 72.3 |
| 2430 | 7.4 | 76.6 |
| 2440 | 7.4 | 76.1 |
| 2450 | 7.3 | 76.2 |
| 2460 | 7.3 | 77.4 |
| 2470 | 7.4 | 79.4 |
| 2480 | 7.4 | 79.6 |
| 2490 | 7.2 | 77.7 |
| 2500 | 7.2 | 79.3 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 2400MHz |  |  |  |
| 2450MHz |  |  |  |
| 2500MHz |  |  |  |
|
|
