| Brand Name : | Leenz |
| Model Number : | LZANT-10176-A |
| Certification : | RoHs |
| Payment Terms : | T/T |
| Supply Ability : | 5K per day |
| Delivery Time : | 15 days |
4G Lte Embedded Antenna Built In Antenna FPC Antenna MHF1 Plug 1.13 Cable 30×20
1. Specification
| A. Electrical Characteristics | ||
| Frequency | 700-960MHz | 1710-2700MHz |
| S.W.R. | <4.6 | <2.0 |
| Antenna Gain | 2.3dBi | 4.2dBi |
| Efficiency | ≈50% | ≈50% |
| Polarization | Linear | |
| Impedance | 50 Ohm | |
| Max Power | 50W | |
| B. Material & Mechanical Characteristics | ||
| Cable Type | RF1.13 Cable | |
| Connector Type | MHF1 Plug | |
| Dimension | 30*20mm | |
| Weight | 0.001Kg | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 65 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency (MHz) | 700 | 720 | 740 | 760 | 780 | 800 | 820 | 840 | 860 | 880 | 900 | 920 | 940 | 960 |
| Gain (dBi) | -2.84 | -2.87 | -2.46 | -2.16 | -2.42 | -1.56 | -1.41 | -1.77 | -1.76 | -1.08 | -0.36 | 0.28 | 2.17 | 2.32 |
| Efficiency (%) | 23.35 | 23.42 | 27.17 | 31.02 | 30.82 | 33.02 | 33.33 | 29.57 | 27.9 | 31.83 | 36.31 | 38.3 | 53.76 | 55.32 |
| Frequency (MHz) | 1710 | 1800 | 1900 | 2000 | 2100 | 2200 | 2300 | 2400 | 2500 | 2600 | 2690 |
| Gain (dBi) | 2.21 | 3.01 | 3.06 | 3.27 | 4.23 | 3.68 | 2.97 | 3.08 | 3.18 | 3.67 | 3.74 |
| Efficiency (%) | 50.59 | 59.86 | 51.75 | 48.32 | 59.14 | 59.57 | 49.95 | 47.05 | 44.23 | 46.24 | 56.66 |

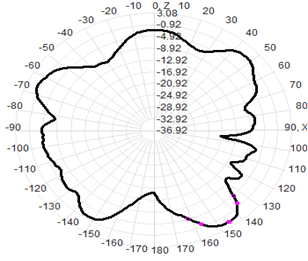

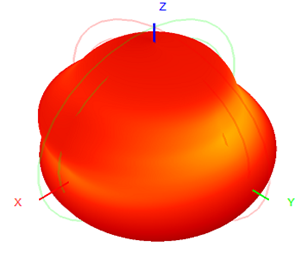

| 3D | 2D-Horizontal | 2D-Vertical | |
| 700MHz |  |  |  |
| 800MHz |  |  |  |
| 960MHz |  |  |  |

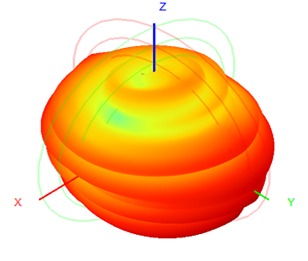

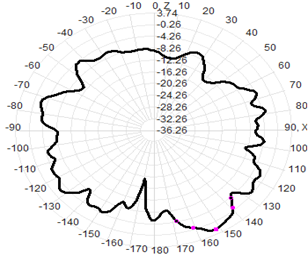

| 3D | 2D-Horizontal | 2D-Vertical | |
| 1700MHz |  |  |  |
| 2400MHz |  |  |  |
| 2690MHz |  |  |  |
|
|
