N Male 5700-5900M5.8G 9dBi Omni 150W drone jammer strike pressed FRP waterproof antenna
1. Specification
| A. Electrical Characteristics | |
| Frequency | 5700-5900MHz(Customizable others) |
| Impedance | 50 Ohm |
| S.W.R. | <2.0 |
| Antenna Gain | 9dBi |
| Efficiency | ≈80% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 10±5° |
| Max Power | 150W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N - Female |
| Dimension | Φ25*600mm |
| Colour | Army black |
| Weight | 0.4Kg |
| Radome material | Fiberglass |
| C. Environmental | |
| Operation Temperature | - 45 ˚C ~ + 85 ˚C |
| Storage Temperature | - 45 ˚C ~ + 85 ˚C |
| Rated Wind Velocity | 36.9m/s |
| Lighting Protection | DC Ground |
2. Antenna - S Parameter Test Data

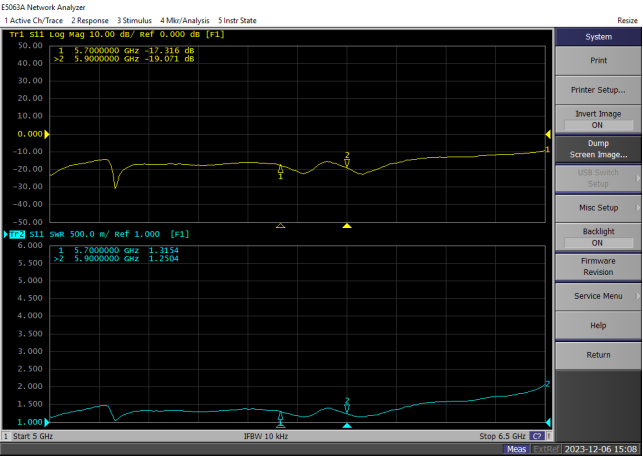

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) | Efficiency(%) |
| 5700 | 8.3 | 79.7 |
| 5725 | 7.8 | 75.8 |
| 5750 | 8.3 | 83.5 |
| 5775 | 8.2 | 79.8 |
| 5800 | 8.9 | 84.3 |
| 5825 | 9.0 | 75.6 |
| 5850 | 9.3 | 79.3 |
| 5875 | 9.3 | 83.0 |
| 5900 | 9.3 | 86.2 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 5700MHz |  |  |  |
| 5800MHz |  |  |  |
| 5900MHz |  |  |  |
|
|
