2.1G2.4G3.5G5.8G Omnidirectional 150W drone jammer strike pressed FRP waterproof antenna
1. Specification
| A. Electrical Characteristics | |
| Frequency | 5150-5850MHz(Customizable others) |
| Impedance | 50 Ohm |
| S.W.R. | <2.0 |
| Antenna Gain | 10dBi |
| Efficiency | ≈85% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 10±5° |
| Max Power | 150W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N - Female |
| Dimension | Φ25*600mm |
| Colour | Army black |
| Weight | 0.5Kg |
| Radome material | Fiberglass |
| C. Environmental | |
| Operation Temperature | - 45 ˚C ~ + 85 ˚C |
| Storage Temperature | - 45 ˚C ~ + 85 ˚C |
| Rated Wind Velocity | 36.9m/s |
| Lighting Protection | DC Ground |
2. Antenna - S Parameter Test Data

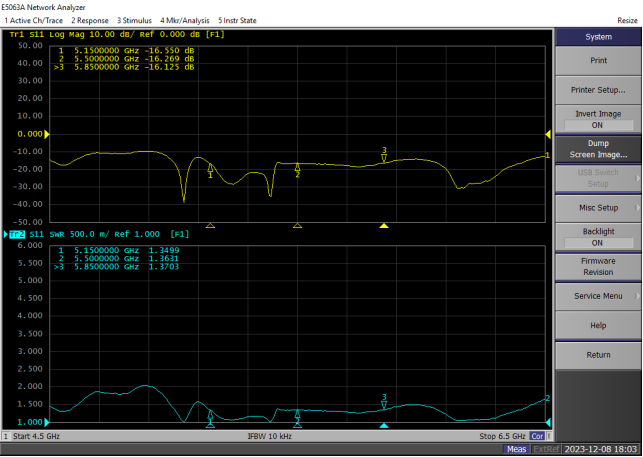

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) | Efficiency(%) |
| 5150 | 9.6 | 73.7 |
| 5200 | 9.1 | 76.2 |
| 5250 | 9.1 | 80.8 |
| 5300 | 9.0 | 82.7 |
| 5350 | 8.8 | 82.4 |
| 5400 | 8.6 | 76.3 |
| 5450 | 9.9 | 78.4 |
| 5500 | 9.7 | 81.1 |
| 5550 | 9.2 | 79.3 |
| 5600 | 9.0 | 78.5 |
| 5650 | 8.9 | 79.0 |
| 5700 | 9.0 | 82.9 |
| 5750 | 9.2 | 87.1 |
| 5800 | 9.3 | 94.1 |
| 5850 | 8.9 | 87.5 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 5150MHz |  |  |  |
| 5500MHz |  |  |  |
| 5850MHz |  |  |  |
|
|
