| Brand Name : | Leenz |
| Model Number : | LZANT-10118-A |
| Certification : | RoHs |
| Payment Terms : | T/T |
| Supply Ability : | 500 per day |
| Delivery Time : | 15 days |
1. Specification
A. Electrical Characteristics | ||
| Frequency | 5150-5850MHz | |
| VSWR | < 2.0 | |
| Efficiency | ≈70% | |
| Peak Gain | 10dBi | |
| Impedance | 50 Ohm | |
| Polarization | Linear | |
| Horizontal Beamwidth | 360° | |
| Vertical Beamwidth | 10±2° | |
| T90(H) roundness | ±2 | |
| Max Power | 50W | |
| B. Material & Mechanical | ||
| Connector Type | N-J | |
| Dimension | Φ16*100±3mm | |
| Weight | 0.2Kg | |
| Radome material | Fiberglass (Grey) | |
C. Environmental | ||
| Operation Temperature | - 45˚C ~ +85 ˚C | |
| Storage Temperature | - 45˚C ~ +85 ˚C | |
| Rated Wind Velocity | 36.9m/s | |
| Lighting Protection | Dc grounding | |
2. Antenna - S Parameter Test Data
2.1 VSWR

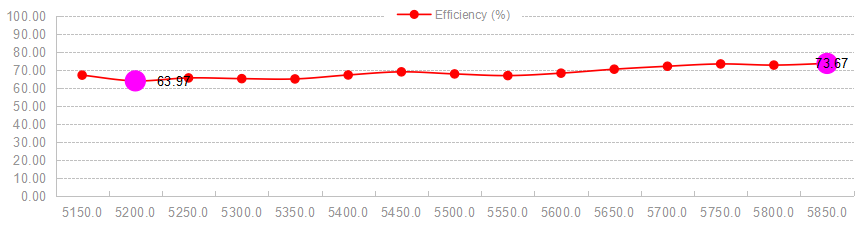

2.2 Total Efficiency & Gain:
| Frequency(MHz) | 5150 | 5200 | 5250 | 5300 | 5350 | 5400 | 5450 | 5500 | 5550 | 5600 | 5650 | 5700 | 5750 | 5800 | 5850 |
| Gain (dBi) | 8.75 | 8.82 | 9.08 | 9.16 | 9.32 | 9.86 | 10.12 | 9.98 | 9.81 | 9.87 | 10.38 | 10.37 | 10.09 | 9.34 | 8.51 |
| Efficiency (%) | 67.16 | 63.97 | 65.61 | 65.21 | 65.05 | 67.25 | 68.99 | 67.83 | 66.91 | 68.26 | 70.46 | 72.10 | 73.38 | 72.74 | 73.67 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 5150MHz |  |  |  |
| 5550MHz |  |  |  |
| 5850MHz |  |  |  |
|
|
