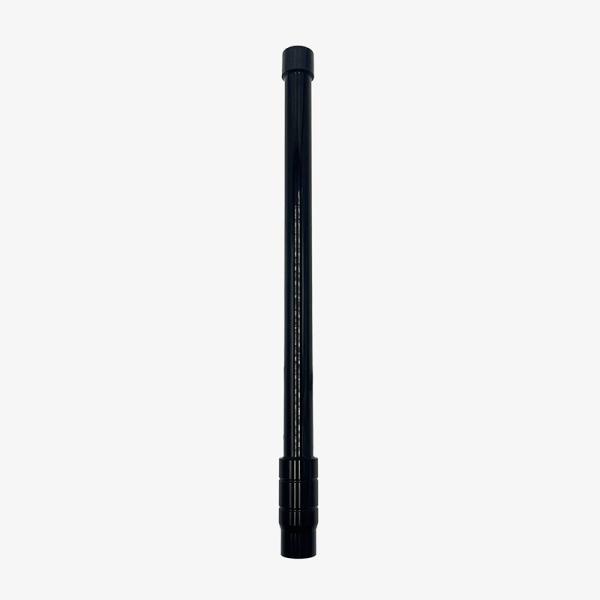

1. Specification
A. Electrical Characteristics | ||
| Frequency | 5720-5850MHz | |
| VSWR | < 2.0 | |
| Efficiency | ≈70% | |
| Peak Gain | 8dBi | |
| Impedance | 50 Ohm | |
| Polarization | Linear | |
| Horizontal Beamwidth | 360° | |
| Vertical Beamwidth | 15±5° | |
| T90(H) roundness | ±1 | |
| Max Power | 100W | |
| B. Material & Mechanical | ||
| Connector Type | N-J | |
| Dimension | Φ20*350±5mm | |
| Weight | 0.17Kg | |
| Radome material | Fiberglass (black) | |
C. Environmental | ||
| Operation Temperature | - 45˚C ~ +85 ˚C | |
| Storage Temperature | - 45˚C ~ +85 ˚C | |
| Rated Wind Velocity | 36.9m/s | |
| Lighting Protection | Dc grounding | |
2. Antenna - S Parameter Test Data

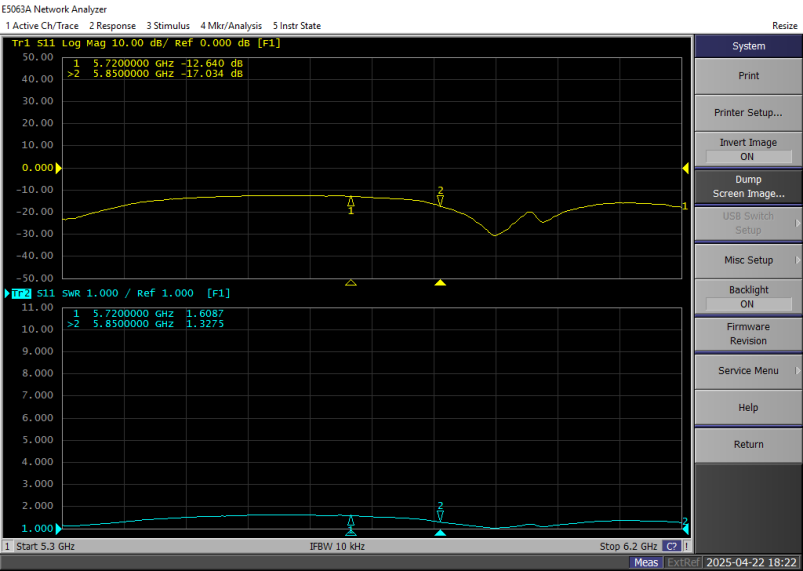

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) | Efficiency(%) |
| 5720 | 6.7 | 71.2 |
| 5740 | 6.6 | 66.0 |
| 5760 | 7.1 | 72.0 |
| 5780 | 7.0 | 66.5 |
| 5800 | 7.6 | 74.5 |
| 5820 | 7.3 | 66.7 |
| 5840 | 7.5 | 67.2 |
| 5850 | 7.5 | 65.0 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 5720MHz |  |  |  |
| 5800MHz |  |  |  |
| 5850MHz |  |  |  |
|
|
