N-JW 3G4G LTE GSM NB-Iot GPRS ATU DTU Omnidirectional 3dBi Outdoor base station gateway Fiberglass waterproof antenna
1. Specification
| A. Electrical Characteristics | ||
| Frequency | 800-960MHz | 1710-2700MHz |
| Impedance | 50 Ohm | 50 Ohm |
| S.W.R. | <2 | <3.5 |
| Gain | 2dBi | 3dBi |
| Efficiency | ≈58% | ≈62% |
| Polarization | Linear | Linear |
| Horizontal Beamwidth | 360° | 360° |
| Vertical Beamwidth | 50±10° | 45±10° |
| Max Power | 50W | |
| B. Material & Mechanical Characteristics | ||
| Connector Type | N -JW | |
| Dimension | Φ20*150mm | |
| Weight | 0.11Kg | |
| Radome material | Fiberglass | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 85˚C | |
| Storage Temperature | - 40 ˚C ~ + 85˚C | |
2. Antenna - S Parameter Test Data

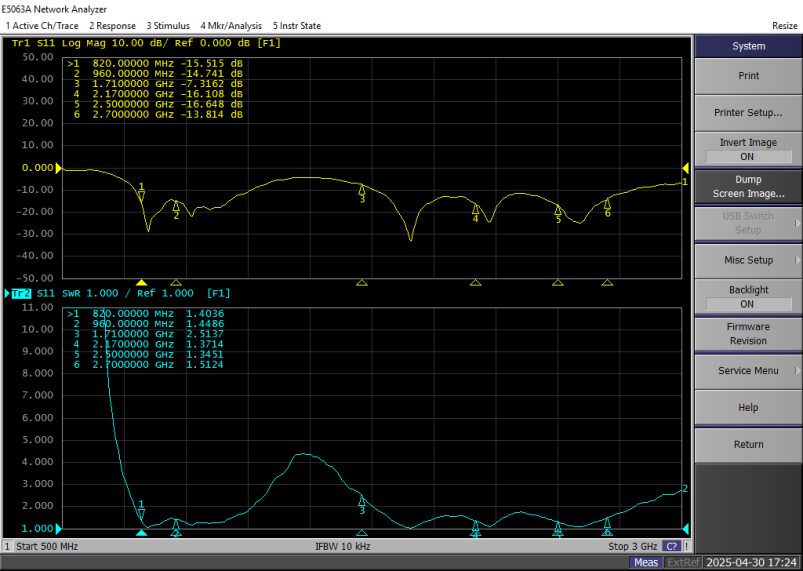

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) | Efficiency(%) |
| 820 | 1.9 | 57.4 |
| 840 | 2.2 | 60.1 |
| 860 | 2.3 | 59.3 |
| 880 | 2.1 | 58.9 |
| 900 | 1.8 | 54.5 |
| 920 | 1.9 | 54.2 |
| 940 | 2.4 | 56.1 |
| 960 | 2.5 | 57.9 |
| 1710 | 2.4 | 60.7 |
| 1800 | 3.0 | 65.8 |
| 1900 | 2.4 | 67.6 |
| 2000 | 1.8 | 67.0 |
| 2100 | 1.5 | 58.0 |
| 2200 | 2.1 | 61.2 |
| 2300 | 3.5 | 56.5 |
| 2400 | 3.5 | 57.6 |
| 2500 | 3.9 | 62.5 |
| 2600 | 3.4 | 62.6 |
| 2700 | 3.5 | 60.2 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 800MHz |  |  |  |
| 880MHz |  |  |  |
| 960MHz |  |  |  |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1710MHz |  |  |  |
| 2220MHz |  |  |  |
| 2700MHz |  |  |  |
|
|
